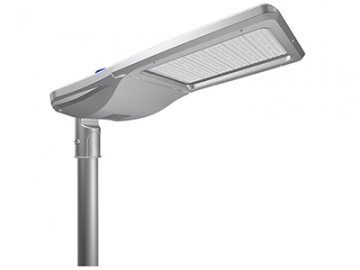

LED Slim Street Light
Product Description
- Ultra slim heat sink design makes the lamp lighter and better in heat dissipation;
- High lumen SMD3030 chip, luminous efficacy 155lm/w;
- Waterproof IP67, high thermal conductivity housing;
- Beam angle Type IIJIIJV glass lens with transmittance 92%;
- Support all kinds of intelligent sensors (Microwave, Daylight, Camera);
- Adjustable mounting 20 degree;

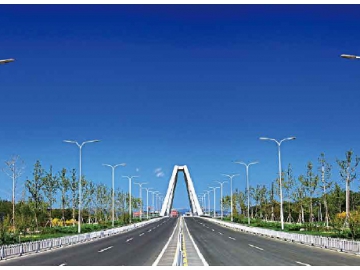

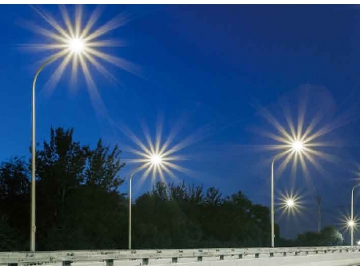

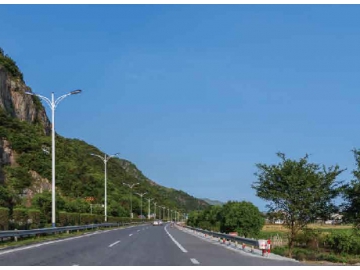

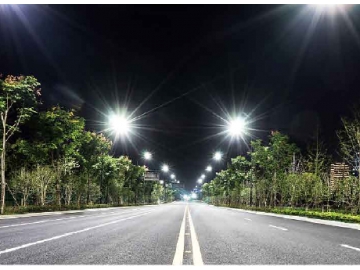

Application
Widely use in high pole parking lot area, car park, roadway, pathway square, stadium, amuse¬ment，residential area，yard，industrial area and etc.
Features
Specifications
Technical Data
| Model Number | MF-SL60W/100W-B | MF-SL120W/150W-B | MF-SL200W/250W-B | MF-SL300W-B |
| Power | 60W/100W | 120W/150W | 200W/250W | 300W |
| Luminous Efficacy | 155lm/W | 150lm/W | 155lm/W | 155lm/W |
| Lumen Output | 9300lm/15500lm | 18600lm/23250lm | 31000lm/38750lm | 46500lm |
| LED Quantity | 77 pcs/154 pcs | 154pcs/231pcs | 308pcs/385pcs | 462pcs |
| Dimension | 570*379*130mm | 570*379*130mm | 725*379*130mm | 725*379*130mm |
| CCT | 3000K 4000K 5000K 6000K (Custom Option) | 3000K 4000K 5000K 6000K (Custom Option) | 3000K 4000K 5000K 6000K (Custom Option) | 3000K 4000K 5000K 6000K (Custom Option) |
| CRI | ≥80Ra | ≥80Ra | ≥80Ra | ≥80Ra |
| System Efficiency | ≥90% | ≥90% | ≥90% | ≥90% |
| Lens | Type II， Type III, Type IV | Type II, Type III, Type IV | Type II，Type III, Type IV | Type II, Type III, Type IV |
Electrical Details
| Input Voltage | AC 100-277V/347V/480V |
| Power Frequency | 50-60HZ |
| Output Voltage | DC36-48V |
| Power Efficiency | ＞92% |
| Power Factor | ≥0.95 |
| Total Harmonic Distortion | ≤15% |
| Dimmable | Yes (Optional) |
Other Details
| IP Rating | IP67 | IP67 | IP67 | IP67 |
| Lifespan | 100,000+ Hours | 100,000+ Hours | 100,000+ Hours | 100,000+ Hours |
| Storage Temperature | -20°~65°C | -20°~65°C | -20°~65°C | -20°~65°C |
| Operating Temperature | -20°~55°C | -20°~55°C | -20°~55°C | -20°~55°C |
| Luminaire Net Weight | 8.8KG/9.3KG | 9.4KG/9.5KG | 12.7KG/12.8KG | 13.3KG |
| Certification | UL, DLC Premium, SAA, TUV, VEET, CB | UL, DLC Premium, SAA, TUV, VEET, CB | UL, DLC Premium, SAA, TUV, VEET, CB | UL, DLC Premium, SAA, TUV, VEET, CB |
| Color of housing | Gray(customized) | Gray(customized) | Gray(customized) | Gray (customized) |
Packing Info
| Model No. | N.G(KG) | G.W (KG) | Pcs/carton | Carton Size(CM) |
| MF-SL60W-B | 8.6 | 10.7 | 1 | 77*46*20 |
| MF-SL100W-B | 9.3 | 11.4 | 1 | 77*46*20 |
| MF-SL120W-B | 9.4 | 11.5 | 1 | 77*46*20 |
| MF-SL150W-B | 9.5 | 11.6 | 1 | 77*46*20 |
| MF-SL200W-B | 12.7 | 15.4 | 1 | 93*46*20 |
| MF-SL250W-B | 12.8 | 15.6 | 1 | 93*46*20 |
| MF-SL300W-B | 13.3 | 16.2 | 1 | 93*46*20 |
Details
Light Distribution
