Automatic Piping Welding Workstation (Type-D)

: http://pipemachinechina.com/2-7-piping-welding-workstation.html

Model: PAWWS-16Aa/24Aa

Technical Parameters

Pipe Diameter Applicable: DN400/DN600
Pipe Wall Thickness Applicable: 3-20/3-20/3-20/10-60MM
Applicable Materials: Carbon steel, alloy steel, stainless steel and cryogenic steel
Welding Line Applicable: Various of butt welding lines for pipe spools such as pipe-pipe, pipe-elbow, pipe-flange, flange-flange and flange-elbow, etc.
Welding Procedure: FCAW/FCAW/FCAW/SAW (Option or as per request)
Welding Power: NBC-500/NBC-500/NBC-500/MZ-630 (Option or as per request)

Applications
The automatic piping welding workstation is used for projects with a majority of standard wall thickness pipes and few heavy wall thickness pipes. It can also be used for projects with a majority of heavy wall thickness pipes and few standard wall thickness pipes (PAWWS-24Dd).

Features

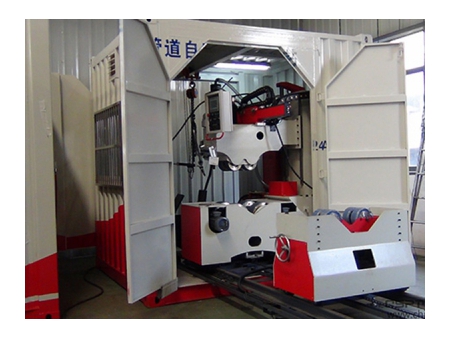

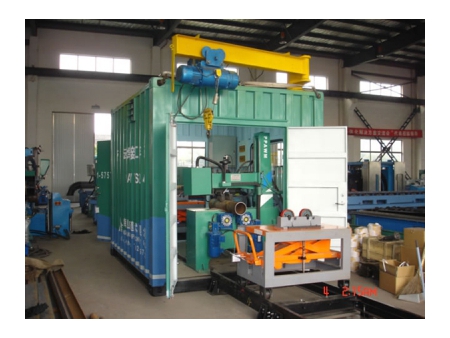

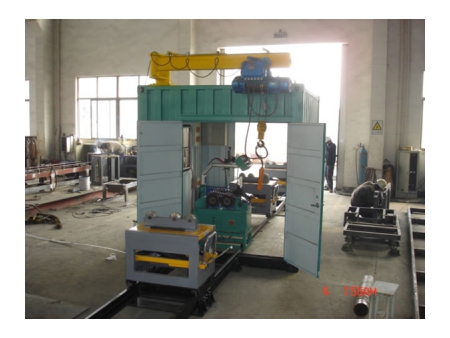

The basic configuration of the automatic piping welding workstation consists of one piece of 3m container made with special retrofit, one set of piping prefabrication automatic welding machine/piping cantilever automatic welding machine/automatic portable piping welding machine/heavy duty wall thickness piping automatic welding machine, one set of rail and trolley conveying system, one set of cantilever cranes (option) and one set of fcaw welding source/fcaw welding source/fcaw welding source/ saw welding source.
Production efficiency of the automatic piping welding workstation is 225~350 O.D-Inch per day (DN200 SCH40).
It offers excellent equipment mobility (without limitation of radiation radius when using container as carrier).
Specialized field workstation; High welding efficiency and good welding quality; Suitable for automatic welding of all kinds of spool pieces. Equipped with: one specially retrofitted 6M container one or two Split Type Pipe Automatic Welding Machines.
