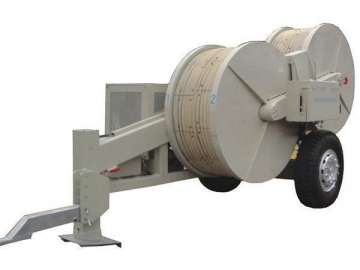

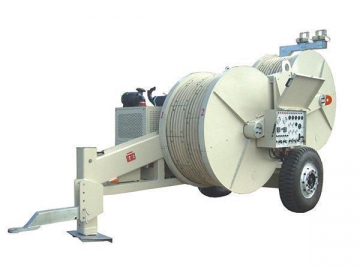

SA-YZ2×90 Hydraulic Tensioner
Item Number: 07201
Our SA-YZ2×90 Hydraulic Tensioner is applicable for the tension stringing of diversified conductors and ground wires. It can achieve the constant-tension conductor stringing, due to the infinitely variable tension control. The bullwheel of this product is lined with abrasion resistant MC nylon material.
Furthermore, this SA-YZ2×90 Hydraulic Tensioner has two powerful configurations. Two sets of hydraulic power output interface are capable of connecting the hydraulic conductor reel stand. The spring applied hydraulically released multi-plate brake will act automatically in case of hydraulic failure. Therefore, the safety can be well ensured.
Essential Parameters
SA-YZ2×90 Hydraulic Tensioner
Item number :07201
Essential parameter
Maximum Tension(kN):2×90 or 1×180 ,
Continuous Tension(kN):2×80 or 1×160,
Maximum speed (km/h):5
Bull wheel bottom of groove diameter(mm):Φ1850
Number of grooves:2×6
Maximum pull-back (kN):2×90 or 1×180
Maximum pull-back speed(km/h):2×1.7
Maximum suitable conductor diameter (mm): Φ48.8
Engine power /speed (kW/rpm):82.5/2500
Dimensions (mm): 5300×2290×2950
Weight(kg):10500
Main Components
| Engine | Deutz air-cooled diesel engine |
| Main Pump/Motor | Rexroth (BOSCH) |
| Main Hydraulic Valve | Rexroth (BOSCH) |
| Reducer | RR (Italian) |
| Radiator | AKG |
| Hydraulic Instrument | WIKA |
