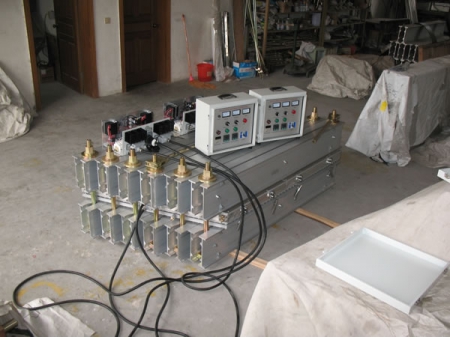

Rubber Belt Splicing Vulcanizer
Rubber Belt Press, Conveyor Belt Joint Press, Conveyor Belt Vulcanizing Press, Conveyor Belt Machine
Remarks:
1. Machine Maximum size: from 650MM-4200MM
2. Voltage: 380V 660V 480V 440V 415V 400V or 220V
3. Vulcanizing temperature: 0-200℃adjustable randomly
4. Time for temperature raise (from normal temperature to vulcanizing temperature) no more than 20 minutes
5. Vulcanizing pressure: 1.8MPa (details refer to user specifications and factory markings)
6. Time of heat preservation for vulcanizing can be adjusted according to the thickness of the rubber belts
7. Splicing length of rubber conveyor belt for vulcanizing jointing can be connected together by single or several pieces if necessary
| Model | Size of heating board: L×W (mm) | Width for jointed rubber belt (mm) | Total power (kw) | Max. weight of component (kg) | Measurement: L×W×H (mm) | Total weight (kg) | Equipped device | |
| Manual pump | Electric control box | |||||||
| EPN-650 | 830×838 | 650 | 4 | 45.5 | 1142×830×750 | 445 | 1 | 1 |
| EPN-800 | 830×1028 | 800 | 7.2 | 53.8 | 1320×830×750 | 550 | 1 | 1 |
| EPN-1000 | 830×1188 | 1000 | 8.4 | 60.5 | 1440×830×750 | 625 | 1 | 1 |
| EPN-1200 | 830×1458 | 1200 | 10.8 | 69.3 | 1680×830×750 | 795 | 1 | 1 |
| EPN-1400 | 830×1638 | 1400 | 11.4 | 78.8 | 1950×830×750 | 911 | 1 | 1 |
| EPN-1600 | 830×1808 | 1600 | 13.2 | 89.7 | 2060×830×980 | 1056 | 1 | 1 |
| EPN-1800 | 830×2078 | 1800 | 15 | 98.3 | 2320×830×980 | 1198 | 1 | 1 |
| EPN-2000 | 830×2328 | 2000 | 16.8 | 107.4 | 2582×830×980 | 1315 | 1 | 1 |
| EPN-2200 | 830×2508 | 2200 | 18 | 130.5 | 2842×830×980 | 1422 | 1 | 1 |
| EPN-2400 | 830×2638 | 2400 | 19.5 | 140 | 2950×830×980 | 1500 | 1 | 1 |
| EPN-2600 | 830×2828 | 2600 | 21.8 | 150 | 3128×830×980 | 1628 | 1 | 1 |
