SMD LED Flood Light, CET-111 Manufacturer

SMD LED Flood Light, CET-111

: http://mf-ledlights.com/2-8-led-flood-light.html

By using die-casting aluminum alloy, this LED flood light features a robust body and lightweight, as well as good heat dissipation. High efficiency SMD LED chips are used to produce high lumen output, which make the LED flood light suitable for lighting in yards, pathways, sports grounds, driveways, as well as landscape lighting and architectural lighting.

CET-111-10W SMD LED Flood Light
Model: CET-111-10W SMD
Power: 10W
Lamp Size(mm): 135x115mm
IP: IP66
LED Chips Quantity(pcs): 20pcs SMD
Lamp Flux(LM): 1100LM

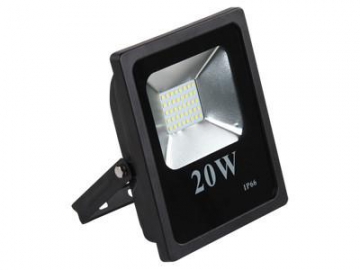

CET-111-20W SMD LED Flood Light
Model: CET-111-20W SMD
Power: 20W
Lamp Size(mm): 183x155mm
IP: IP66
LED Chips Quantity(pcs): 40 pcs SMD
Lamp Flux(LM): 2200LM

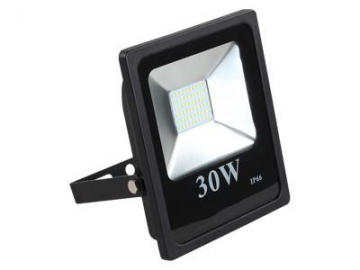

CET-111-30W SMD LED Flood Light
Model: CET-111-30W SMD
Power: 30W
Lamp Size(mm): 222x192mm
IP: IP66
LED Chips Quantity(pcs): 60 pcs SMD
Lamp Flux(LM): 3300LM

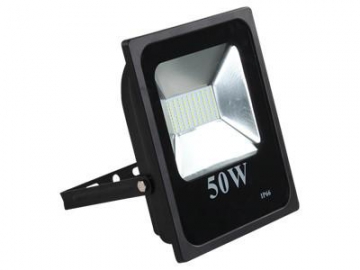

CET-111-50W SMD LED Flood Light
Model: CET-111-50W SMD
Power: 50W
Lamp Size(mm): 282x238mm
IP: IP66
LED Chips Quantity(pcs): 100 pcs SMD
Lamp Flux(LM): 5500LM

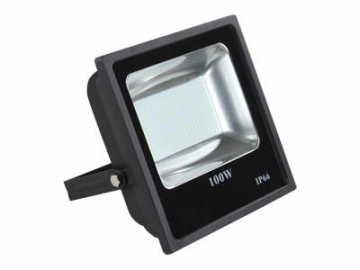

CET-111-100W SMD LED Flood Light
Model: CET-111-100W SMD
Power: 100W
Lamp Size(mm): 345x295mm
IP: IP66
LED Chips Quantity(pcs): 200 pcs SMD
Lamp Flux(LM): 11000LM

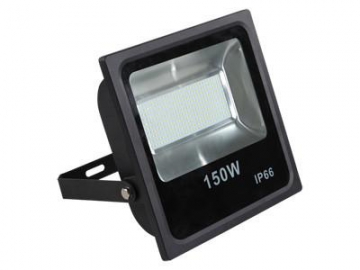

CET-111-150W SMD LED Flood Light
Model: CET-111-150W SMD
Power: 150W
Lamp Size(mm): 345x325mm
IP: IP66
LED Chips Quantity(pcs): 300 pcs SMD
Lamp Flux(LM): 16500LM
CET-111-200W SMD LED Flood Light
Model: CET-111-200W SMD
Power: 200W
Lamp Size(mm): 375x375mm
IP: IP66
LED Chips Quantity(pcs): 400 pcs SMD
Lamp Flux(LM): 22000LM

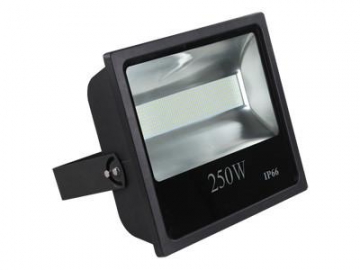

CET-111-250W SMD LED Flood Light
Model: CET-111-250W SMD
Power: 250W
Lamp Size(mm): 440x395mm
IP: IP66
LED Chips Quantity(pcs): 500 pcs SMD
Lamp Flux(LM): 27500LM

Details

Features

The flood lights use an IC (integrated circuit) constant current waterproof driver, and users can choose to equip the lights with dimming and timing functions. Each LED light features a stable current and a surge protection of up to 6,000V, all to ensure a safe usage.

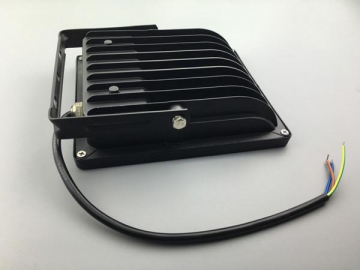

The LED light features an integrated die cast aluminum housing and light source design, making installation easy.
The light source is an LED chip with a high luminance, and features a low energy consumption and a low heat, with a service life of up to 50,000 hours.

Detailed Parameters

Lamp Material	Die Cast Aluminum + Glass
Beam Angle	120°
IP Rating	IP65 or IP66
Surge Protection	4-6KV
LED Chips	2835SMD 0.5W or COB
CRI	70-75 or 80-85
Power Factor	0.6-0.7 or 0.9-0.97
Input Voltage	AC85-277V or AC165-265V
Body Color	White, Black, customized
Color Temperature	3000-3500K, 4000-4500K, 5000-5500K, 6000-6500K;
Diffuser	Aluminum or PC

Note: The diver has dimmable and non-dimmable types.
