Swivel Hook With Bearing

Swivel Hook With Bearing
Swivel Hook With Bearing
: http://shenli-rigging.com/2-9-5-swivel-hook-with-bearing.html
Technical Parameters

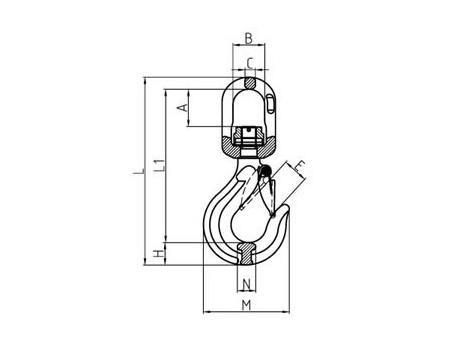

ITEM NO, WEIGHT/kg Working Load Limit (T) Breaking Load (T) A±2 B±1 E±l M±1.5 Ll±2 L±3 N±2 C±1 H±2
6-8 0.65 1.12 4.48 30 32.5 24 69 136 166 16 11 19.3
7/8-8 0.95 2.0 8.0 42 36 28.5 88 173 212 20 13 23
10-8 1.71 3.15 12.6 50 42 31 105 204.8 251.7 23 15.5 29.5
13-8 2.97 5.3 21.2 58 50 43.7 135 242 303.6 32 17 38
16-8 5.3 8.0 32.0 63.5 61 45 161 291.8 360.8 37.5 21.5 45.4
18/20 9.5 12.5 50 86 74 56 191.7 356 434.5 49 25 50
22-8 13.8 15 60 102.5 97 70 224 443 538 58 33 62
