Fiber Laser Cutting Machine, CMA1310C-G-A
Applicable materials
Steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized plate, aluminized zinc plate, copper and other various metal materials.
| Model | CMA1310C-G-A |
| Working area (mm) | 1300*1000 mm |
| Laser power (W) | 500W~15000W |
| Position accuracy (mm) | ± 0.03/1000 |
| Reposition accuracy (mm) | ± 0.02/1000 |
| Maximum speed (m/min) | 45 m/min |
| Maximum accelerated speed (G) | 1.2G |
| Weight (kg) | 1200kg |
| Overall dimension (mm) | 2350*2150*1900 mm |
| Power supply | 220V/50Hz |
| Format supported | DXF/CAD, etc. |
| Working environment | Temp: 5~ 40°C Humidity: 5-80% No condensate water, no dust or less dust. |
| Gross power | 4 |

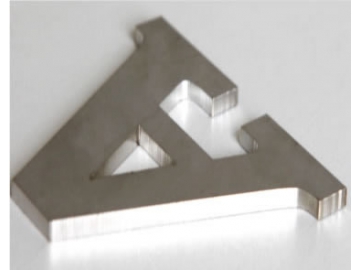

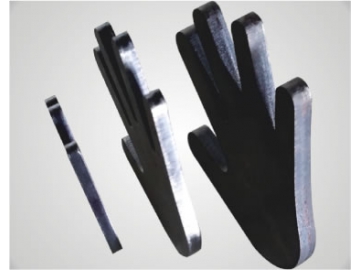

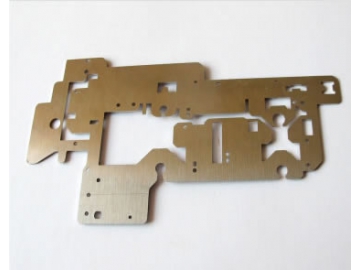

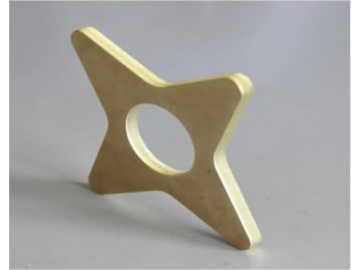

Samples:
Product Feature
1.Gantry double gear rack and double servo motor drive system allows for high inertia and large torque output resulting in higher production efficiency.
2.The crossbeam made from drawn aluminum profiles and processed by finishing machining features light weight, high rigidity and good dynamic performance.
3.Precision machining lathe bed is annealed and processed by aging treatment to relive internal stress to ensure the stable running of the laser cutting machine.
4.Totally enclosed appearance, reliable and secure operations, conforming to international CE standards.
5.Professional laser cutting software achieves array scanning cutting, graph layout, sharp corner smoothing, high-speed punching and marking.
