Multi-Groove Blades

: http://setonknife.com/2-9-multi-groove-knife.html

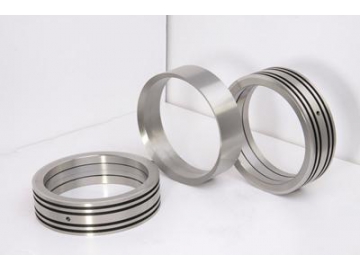

Multi-groove knife is used for cutting household paper like tissue paper, paper bag, and paper roll. We will recommend the right circular blade model from dozens of standard specifications for users' specific applications. If you can't find what you need, you can give us your drawings or samples and SETON will produce the customized cutting blade exactly in accordance with your requirements.

Technical Parameters

Multi-groove knife blocks up to φ500
Radial runout 0.02mm
Axial runout 0.02mm
Narrow tolerance of the tooth pitch up to±0.01mm possible
Production according to OEM specification

Commonly Used Materials
GCr15, 9CrSi, Cr12MoV, Cr12Mo1V1, SKD-11, and so on

Commonly Used Specifications

Outer diameter	Inner diameter	Thickness
200	171	0.8
250	222	0.8
114	100	40
178	138	55
200	180	40
200	158	55
200	165	92
200	170	95
275	236	62
275	245	100
275	245	85
280	240	110
300	270	88
310	266	110

Company Brief:
Seton has various industrial blades for metal cutting and paper slitting, the products are as rotary slitter knives, top slitter blades, bottom slitter knives, also offer customized service to do customer's own paper cutting knives.
Seton is an experienced multi-groove bottom slitter blades manufacturer, various machine knives and blades for customer needs.
