ERW32 ERW Carbon Steel Tube Mill

ERW32 ERW Carbon Steel Tube Mill
ERW32 ERW Carbon Steel Tube Mill
ERW32 ERW Carbon Steel Tube Mill

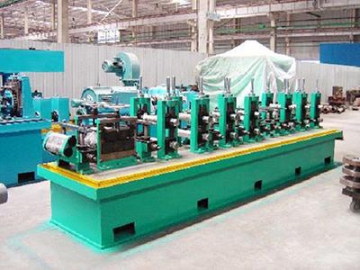

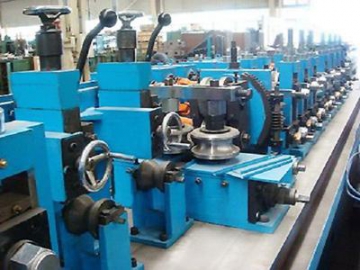

ERW32 electric resistance welded carbon steel pipe production line

Product & Yield Round Pipe 10mm-32mm Thickness:0.5mm-2.0mm
Square & rectangle tube 10mm×10mm -25mm×25mm Thickness:0.5mm-1.5mm
Length 6m-12m Length Tolerance: ±3mm
Production Speed 20-120 m/min
Production capacity 10,000ton/year
Consumption Mill installed capacity 50 kw
Line Area 45m(length) ×4m (width)
worker 6-8 workers
Raw Material Carbon Steel coil Carbon steel coil Q235B(ASTM GR·D,σs 230)
Width 36mm-150mm Thickness: 0.5mm-2.0mm
Coil ID 450-520mm
Coil OD Max 1200mm
Coil Weight 1.0-1.5t
Advantages
  • Maximum production speed of 120m/minute.
  • Stable operation at high speeds
  • High accuracy and low wastage, only 0.5/100 diameter error of the pipe’s outer diameter
