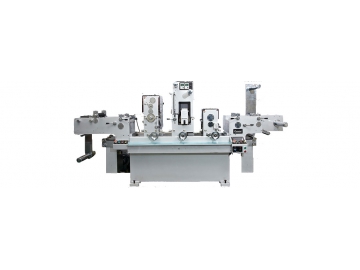

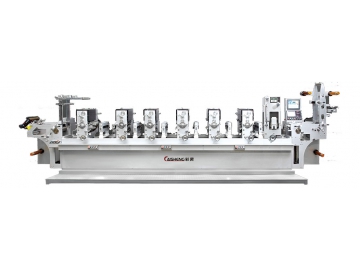

CS-300-5C Intermittent Rotary Letterpress (Label Printing, Vision Inspection, Backside Printing)
- Color option: 2-8 colors
- Web width: 50-300mm
- Max. printing width: 280mm
- Max. rotary printing area: 326mm*280mm
- Skip distance of intermittent printing: 30mm-290mm
- Max. die-cut area: 280mm*260mm

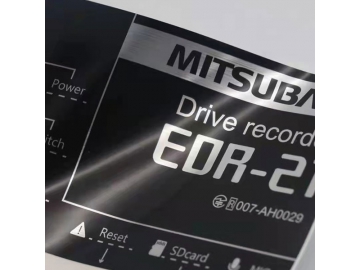

Coated paper, synthetic paper, metalized/silver polyester, PET, PVC, PE, pearlized film, laser film, cardboard (lighter than 400G) and more.
- Wine labels
- Medical stickers and healthcare labels
- Food packaging labels
- Cosmetics labels
- Hang tag labels
- Labels for daily chemical products
-
-
-

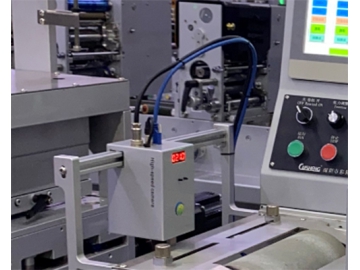

The vision inspection system monitors the printing quality of labels.
-
-
-
Printing and die-cutting are accomplished in one step to improve label printing efficiency.
-
-
-

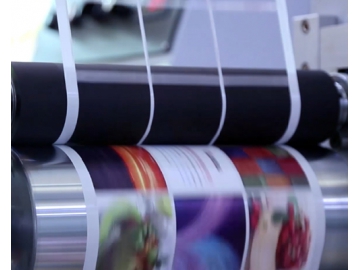

The intermittent letterpress printing machine delivers high quality printing performance with quick printing plate loading, easy and precise registration, perfect combination of machine parts. Registration precision achieves ±0.025mm.
-
-
-

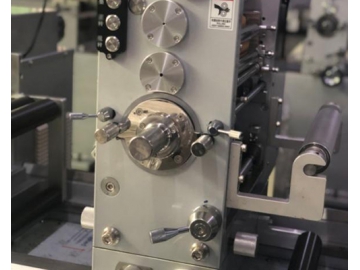

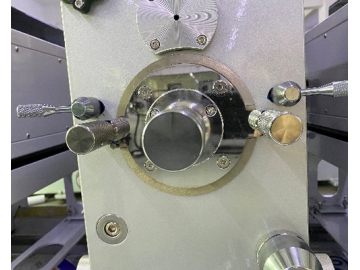

Spindle taper gland cover ensures the consistent printing pressure inside and outside the paper even in large format printing.
-
-
-

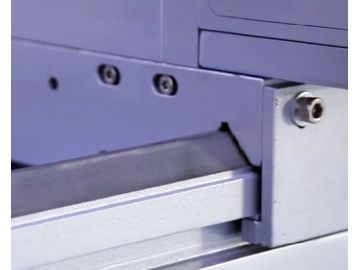

The guide rails are grinded precisely and the machine bed is manually processed to achieve high working precision, fitness, smoothness and stability.
-
-
-

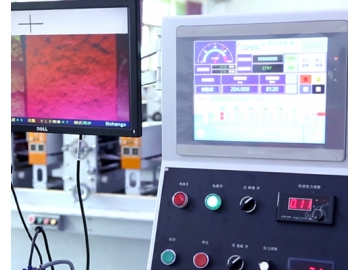

The ink supply system is controlled by servo motor on the touch screen.
