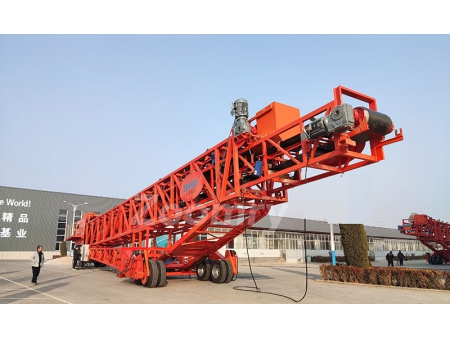

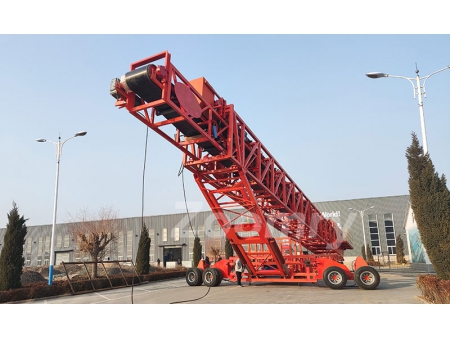

Telescopic Stacker / Stockpiling Conveyor
Telescopic stacker is a mobile material handling equipment developed in response to the needs of stockyard stacking, reclaiming, truck / ship loading and unloading, aiming at increasing stockpile efficiency. With its benefits of flexible mobility, easy operation, low maintenance cost and high cost effectiveness, the radial telescopic stacker is extensively used as portable stacking conveyor in stockpiles for higher stockpile capacity.
Features
- Rotating telescopic stacking capabilities for high efficiency;
- In contrast to conventional stacking equipment with loading height of 5m-8m, telescopic radial stacker conveyor has a working height of 20m, considerably increasing the jobsite's utilization rate;
- High flexibility to move, this stacker can be easily transported other sites once the stacking task in one place is completed;
- Higher cost effectiveness than large-scale stacking reclaiming equipment;
Applications
The radial telescopic stacker is used for mobile stacking in a variety of applications, with a stacking height of up to 20m. Due to its moveable, rotatable, and retractable properties, the stacking capacity and efficiency are substantially boosted.

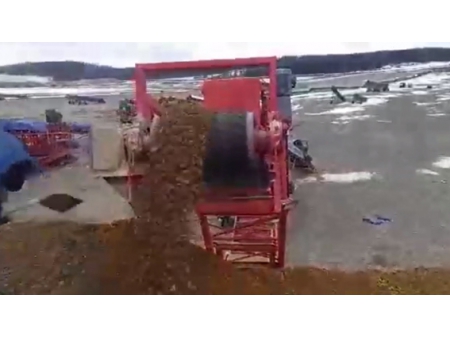

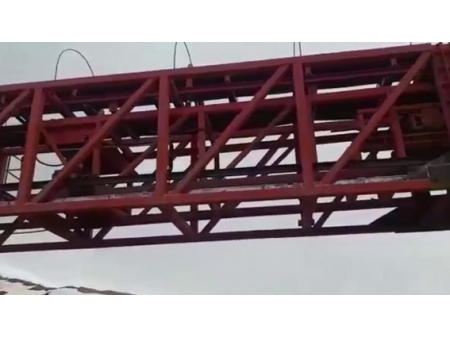

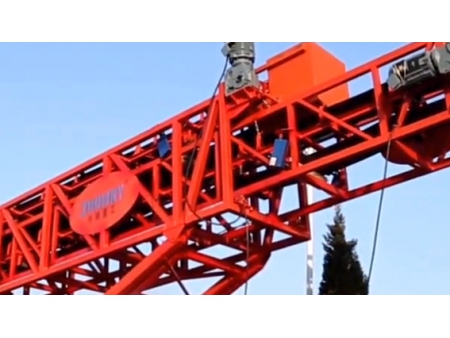

Video Show
Specifications
| Model | Belt width (mm) | Max capacity (m3/h) | Belt speed (m/s) | Standard length (m) | Max. inclination (°) | Telescopic length (m) |
ZR80SF | 800 | 500 | 2.50 | 30/40/50 | 20° | 10-20 |
ZR100SF | 1000 | 850 | 2.50 | 30/40/50 | 20° | 10-20 |
ZR120SF | 1200 | 1500 | 3.15 | 30/40/50 | 20° | 10-20 |
ZR140SF | 1400 | 2100 | 3.15 | 30/40/50 | 20° | 10-20 |
ZR160SF | 1600 | 3500 | 4.00 | 30/40/50 | 20° | 10-20 |
