Rework System
Features
1. Password locking function, easy control.
2. Temperature adjusted by buttons, with auto sleeping and shut-off function.
3. Digital temperature calibration, easy operation.
4. Suction pen inside hot air handle, convenient for using.
5. Brushless fan, adjustable, stepless and wide range of air volume, suitable for various occasions.
6. Large air volume cooling function, long lifetime heating element. The hot air handle is protected.
7. Built-in vacuum pump, powerful suction, no need of external vacuum system.
8. Closed loop of sensor, precise temperature.
9. Light handle is comfortable for using.
Specifications
Soldering part
Power consumption | 60W |
Temperature range | 200℃ - 480℃ |
Sleeping temperature range | 50℃ -250℃ |
Sleeping time range | 1-150min |
Temperature stability | ±2℃ (stationary air, no load) |
Ambient temperature(Max) | 40℃ |
Tip to ground resistance | < 2Ω |
Hot air part
Power consumption | 1000W |
Temperature range | 100℃-500℃ |
Air volume | 1-120L/min |
Ambient temperature(Max) | 40℃ |
Temperature stability | ±2℃ (stationary air, no load) |
De-soldering part
Heating power | 90W |
Nozzle temperature | 200℃ - 480℃ |
Pump | Diaphragm |
Vacuum pressure | 600mmHG |
Sleeping time range | 1-150min |
Replaceable tips
Features
1. Password locking function, easy control.
2. Temperature adjusted by buttons, with auto sleeping and shut-off function.
3. Digital temperature calibration, easy operation.
4. Brushless fan, adjustable, stepless and wide range of air volume, suitable for various occasions.
5. Large air volume cooling function, long lifetime heating element. The hot air handle is protected.
6. Closed loop of sensor, precise temperature.
7. Light handle is comfortable for using.
Specifications
Soldering part
Power consumption | 90W |
Temperature range | 50℃ - 500℃ |
Sleeping temperature range | 50℃ -250℃ |
Sleeping time range | 0-250min |
Temperature stability | ±2℃ (stationary air, no load) |
Ambient temperature(Max) | 40℃ |
Tip to ground resistance | < 2Ω |
Hot air part
Power consumption | 1000W |
Temperature range | 100℃-500℃ |
Air volume | 1-120L/min |
Ambient temperature(Max) | 40℃ |
Temperature stability | ±2℃ (stationary air, no load) |
Features
1. Bsoldering704ESD can meet various soldering requirements.
2. Two-in-one design, featuring total rework functions, compact structure and each independent function.
3. ESD safe design.
Specifications
Power consumption | 380W |
Dimensions | 252(L)*225(W)*155(H)mm |
Weight | About 7.2kg |
Soldering part
Output Voltage | 24V AC |
Temperature Range | 200℃-480℃ |
Temperature Stability | ±1℃(stationary air, no load) |

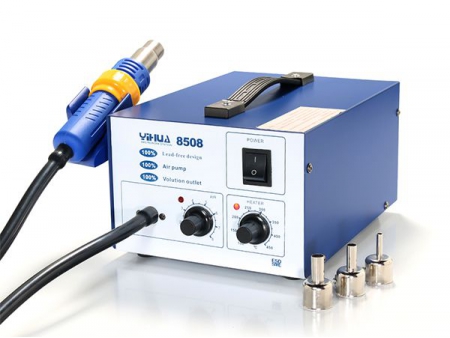

Hot air part
Output Voltage | 220V AC |
Air Pump | Diaphragm |
Air Volume | ≤24L/min |
Temperature Range | 150℃-500℃ |
