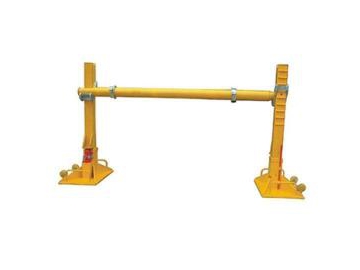

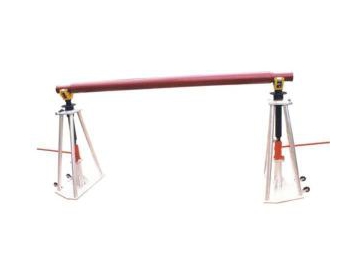

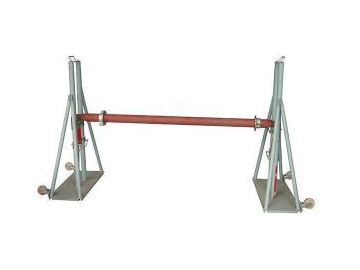

Cable Reel Stand
Our cable reel stand functions as an important support during the construction of large sized cable reel.
Detailed Data
| Item Number | 21341 | 21342 | 21343 |
| Model | SI12 | DL120 | DL200 |
| Maximum Weight of Applicable Cable Reel (t) | 12 | 20 | |
| Diameter of Applicable Cable Reel (mm) | Φ2700~Φ3200 | Φ1600~Φ3200 | Φ2000~Φ4000 |
| Maximum Width of Cable Reel (mm) | 2500 | 2500 | 2500 |
| Diameter of Axle Hole of Reel (mm) | Φ125~Φ200 | Φ160~Φ200 | |
| Weight (kg) | 365 | 403 | 670 |
| Maximum Weight of Single Stand (kg) | 153 | 153 | 230 |
| Jacking and Positioning Method | Hydraulic jacking screw positioning | Hydraulic jacking bolt positioning | Hydraulic jacking and positioning |
