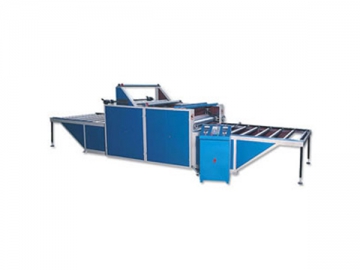

BOPP Laminating Machine
Descriptions of BOPP Laminating Machine YDFM
1. The Laminating Machine is advanced in design, compact in construction and convenient to use.
2. Hydraulic system is available with the machine.
3. The laminating machine has the following features: large and even pressure power, high laminating speed, automatic temperature control, low noise and even running etc. These features can reduce the damage rate and improve production efficiency.
4. Material: BOPP (widely used for single lamination for packing boxes, food boxes, books and drawings etc.)
| Model | 720 | 920 | 1200 |
| Laminating Width | 620mm | 820mm | 1100mm |
| Laminating Speed | 0~30m/min | 0~30m/min | 0~30m/min |
| Laminating Temperature | 60-130℃ | 60-130℃ | 60-130℃ |
| Motor Power | 0.55KW | 0.75KW | 1.2KW |
| Heating Power | 4KW | 6KW | 6.5KW |
| Machine weight | 400kg | 500kg | 600kg |
| Machine Dimensions | 1900×1300×1600mm | 1900×1500×1600mm | 1900×1700×1600mm |
