Anterior Cervical Plate-I System

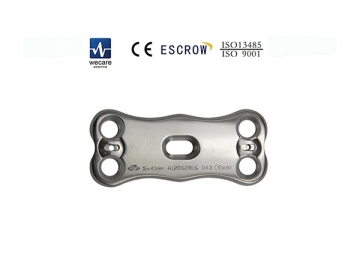

Anterior Cervical Plate
Low-profile anterior cervical plate, of 1.8mm in thickness.Steel plate allows the fixation screw a 0°~12° range of motion in the frontal plane and a 0°~10° range of motion in the sagittal plane.
Technical Specs of Anterior Cervical Plate
| Product name | Material | No. of Holes | Length (mm) | Product ID No. |
| Anterior cervical Plate-I | Pure titanium | 5 | 22 | 6510522 |
| 25 | 6510525 | |||
| 27 | 6510527 | |||
| 29 | 6510529 | |||
| 32 | 6510532 | |||
| 35 | 6510535 | |||
| 38 | 6510538 | |||
| 41 | 6510541 | |||
| 44 | 6510544 | |||
| 6 | 47 | 6510647 | ||
| 40 | 6510640 | |||
| 53 | 6510653 | |||
| 56 | 6510656 | |||
| 59 | 6510659 | |||
| 62 | 6510662 | |||
| 7 | 65 | 6510765 | ||
| 68 | 6510768 | |||
| 71 | 6510771 | |||
| 74 | 6510774 |

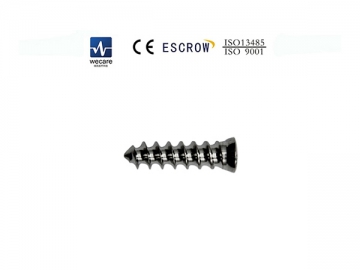

| Product name | Material | Diameter (mm) | Length (mm) | Product ID No. |
| Spinal fixation screw | Titanium alloy | 4.0 | 13 | 6544013 |
| 14 | 6544014 | |||
| 15 | 6544015 | |||
| 16 | 6544016 | |||
| 17 | 6544017 | |||
| 18 | 6544018 |

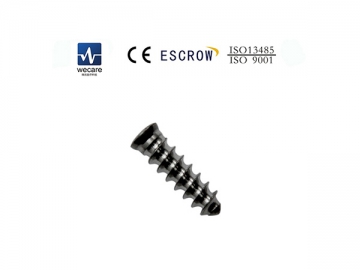

| Product name | Material | Diameter (mm) | Length (mm) | Product ID No. |
| Rescue screw | Titanium alloy | 4.5 | 14 | 6554514 |
| 15 | 6554515 | |||
| 16 | 6554516 | |||
| 17 | 6554517 |

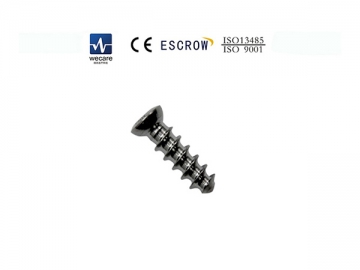

| Product name | Material | Diameter (mm) | Length (mm) | Product ID No. |
| Implant screw | Titanium alloy | 4.0 | 13 | 6554013 |
| 14 | 6554014 | |||
| 15 | 6554015 | |||
| 16 | 6554016 | |||
| 17 | 6554017 | |||
| 18 | 6554018 | |||
| 20 | 6554020 | |||
| 22 | 6554022 | |||
| 24 | 6554023 |
