TJ-40 Rigid Box Corner Pasting Machine
Box corner taping, carton sealing machine, auxiliary machine of rigid box line

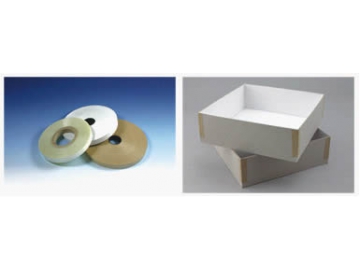

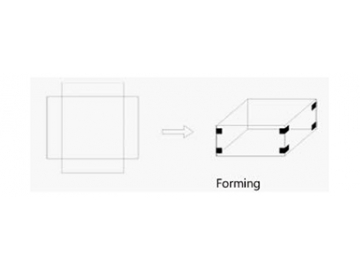

The rigid box corner pasting machine adopts manual carton turning and can accommodate many types of cartons. It uses environmentally friendly hot melt adhesive tape for four corner positioning and forming. The box corners formed are stiff and stable. The machine uses electric single arm pressing device and is equipped with temperature control system. With high efficiency, the machine becomes an essential piece of corner pasting equipment for the manufacturing of boxes.
Parameters
| Model | TJ-40 |
| Power Supply | 220 V/50 HZ |
| Machine Power | 700 W |
| Minimum Box Size | 40*40*10 mm |
| Corner Pasting Speed | 20 pcs/min |
| Size | 800*500*1400 mm |
| Weight | 200 kg |
XINWEI MACHINERY is an experienced rigid box corner pasting machine manufacturer and supplier in China. We provide various types of products such as calendar punching machine, gift box notching machine, and adjustable speed gluing machine.
