Introductions

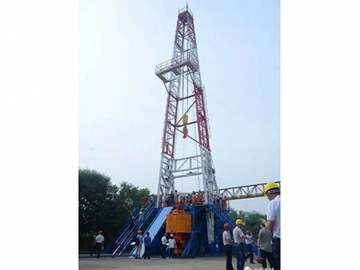

SPS600 hydrogeological drilling and water well drilling rig is mainly used for the drilling and exploring of hydrogeological water well within 600 meters and is suitable for soil layer, rock stratum and gravel stratum. Truss type A frame drill tower or four-corner tube drill tower is used. Meantime, it adopts bulk structure so that it's easy to disassemble, which is convenient for transportation.

Parameters

Basic Parameters	Drilling Depth	600m
	Rotary Table Diameter	φ605mm
	Rotation Speed	42, 75, 134r/min
	Borehole Drill Rod	φ73mm φ89mm
	Kelly Bar	108×108×8000mm 108×108×12000mm
Main Winch	Single Rope Hoisting Capacity	35KN
	Rated Hook Load	210KN
	Hook Hoisting Speed	0.15~0.47m/s
	Pulley&Rope Type	3×3
	Rope Diameter	φ20~21.5mm
Auxiliary Winch	Rated Single Rope Hoisting Capacity	15KN
	Maximum Single Rope Hoisting Capacity	20KN
	Single Rope Hoisting Speed	0.58m/s
	Rope Diameter	φ9.8mm
	Motor Power	37kW
	Main Engine Weight	5.5t

Features

SPS600 drilling rig adopts mechanical drive type. The rotation of rotary table drive the drill to achieve drilling footage, which has the features of big output torque, strong hoisting capacity and wide rotation speed range.
SPS600 drilling rig is equipped with two power sources which include diesel engine and electric motor and users can choose according to requirements. When electronic motor is used, mud pump power need to be equipped by users.
The rotary table is designed with large diameter.
