NC-P CNC Plasmas Cutter

: http://cnc-lasercutting.com/9-cnc-plasma-cutting-machine.html

CNC Oxy-fuel Cutting Machine, CNC Gas Cutting Machine

The NC-P CNC plasmas cutter is controlled using a CNC system with a high positioning accuracy. It's especially suitable for the industries with strict quality requirements, such as automobile, pressure vessel manufacturing, chemical machinery, nuke, universal machinery, engineering machinery, steelwork and more.

Technical parameters for available models

Model	NC-P1325	NC-P1530
Working Size	1300 * 2500*200 mm	1500 * 3000*200 mm
Cutting Speed	0-8000mm/min	0-8000mm/min
Plasma Power Supply	60А Huayuan	60А Huayuan
Air Compressor	3,0 kw	3,0 kw
Motion Control	High-speed micro stepper motors/Servo motor	High-speed micro stepper motors/Servo motor
Control System	Start	Start
Software	Fastcam	Fastcam
Voltage	380v/220v 50/60Hz	380v/220v 50/60Hz
Support Code	G Code	G Code
Cutting Thickness	0.3-20mm	0.3-20mm
Size	380022201280mm	420022501280mm
Weight	1100kg	1600kg

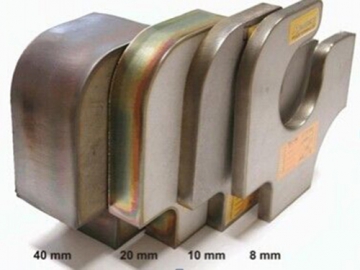

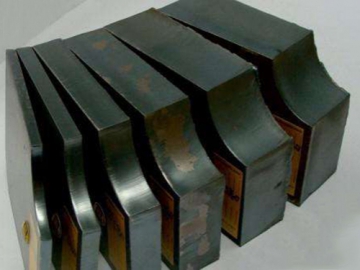

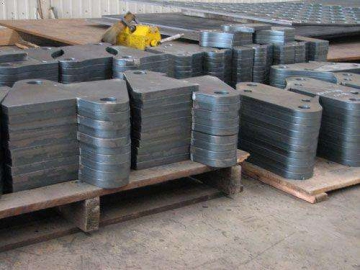

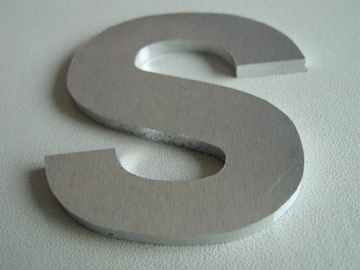

Samples

Features

The plasma cutting machine uses a rack and square guide rail in X and Y axis, ball screw and square guide rail in Z-axis to ensure a high transmission efficiency.
It uses a high configuration digital control system and supports auto arc with an arc success rate exceeding 99% for a reliable performance.
The plasmas cutter ensures a small, smooth incision on the cutting material with no dropping dregs and no need for secondary processing.
It supports the standard G code generated by Artcut, CAXA, Artcam, and Type3 software, and also supports file sharing via USB, making it exceptionally convenient.
