Planetary Mixing Machine, XJ Manufacturer

Planetary Mixing Machine, XJ

: http://longlygroup.com/3-1-planetary-mixing-machine-xj.html

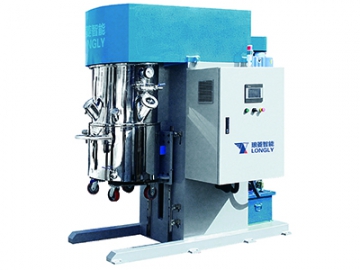

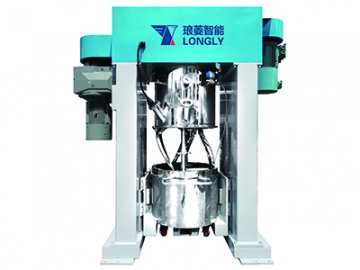

Planetary mixing machine is used to accomplish mixing and dispersingtasks within a short time by using versatile mixing tools. The planetarymixer is configured with two identical blades that rotate on their ownaxes while orbiting the mixing vessel. Meanwhile scraping blade rotatescontinuously to transfer the materials closer to the mixing blades. Atthe same time, two saw-tooth disperser blades revolve at a high speed toimplement dispersing and stirring in the mixing vessel.

Features

Temperature sensor is located at bottom of mixing vessel, reliablyproviding precise temperature measurements of materials;

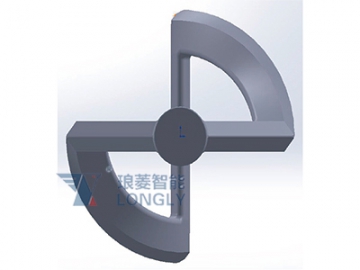

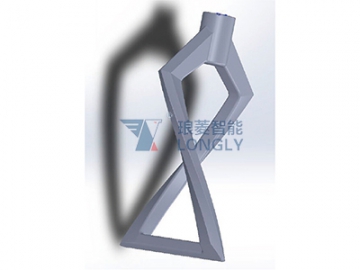

Mixing blades of various shapes and sizes are changeable;
Mixing tools are manufactured through precision casting process,will not induce elastic deformation, suitable for high loadoperation;
Rotating speed is adjustable according to specific needs;

Specifications

Model	Tank Parameter			Motor Power (kW)		Speed (rpm)			Weight	Dimension
Model	Net Volume	Designed Volume	Barrel Size (mm)	Revolution Motor	Dispersing Motor	Revolution Speed	Stirring Speed	Dispersing Speed	kg	LxWxH(mm)
LV-5L	5L	7.85L	Ø250x150	1.5	1.5	0-45	0-90	0-8000	415	1200x700x1800
LV-10L	10L	14L	Ø300x200	2.2	2.2	0-43	0-84	0-6000	550	1300x800x1800
LV-30L	30L	44L	Ø400x350	3	4	0-42	0-77	0-5000	900	1630x900x1950
LV-60L	60L	88L	Ø500x450	5.5	7.5	0-38	0-53	0-4000	1700	1200x700x1800
LV-100L	100L	149L	Ø650x450	7.5	11	0-36	0-46	0-3400	2700	1800x1100x2300
LV-200L	200L	287L	Ø750x650	15	22	0-33	0-42	0-2750	4200	2400x1600x2900
LV-300L	300L	369L	Ø850x650	22	30	0-32	0-44	0-2200	7200	3300x1300x3100
LV-650L	650L	807L	Ø1100x850	45	55	0-28	0-42	0-1750	10500	3800x1600x4000
LV-1000L	1000L	1327L	Ø1300x1000	75	90	0-20	0-36	0-1500	13000	4170x1800x4780
LV-1500L	1500L	2120L	Ø1500x1200	75	90	0-13	0-35	0-1200	17500	4430x2050x4850

Applications

Lithium Ion Battery Slurry (Polymer and Solvent)
Adhesives
Mold Glue
Silicone Sealant
Polyurethane Sealant
Anaerobic Adhesives
Inks
Pigments
Cosmetics
Ointments
Chemicals
Pharmaceuticals
Food Processing
Pesticides
Many Others
