Marine and Vehicle Aluminum Composite Material Panel
Application
Aluminum composite panel of this series possesses the character of good malleability and easy workability, so it is quite suitable for special parts of marine and vehicles. Its colors could be customized in accordance with that of marine or vehicles, so a long service life, an attractive appearance and cost effectiveness could be ensured.
Features
Marine and vehicle aluminum composite material panel gets rid of the disadvantages of traditional ACP and possesses many extra outstanding properties, like, gorgeousness, decorativeness, weather resistance, corrosion resistance, impact resistance, humidity resistance, thermal resistance, vibration resistance, fire-proof and sound-proof, light weight, workability, and easy to install and transport, while not sacrificing the original strength of its raw materials – aluminum and PE materials.
| Specifications Of Aluminum Composite Panel | |
| Normal Width | 1220mm,1250mm,1500mm,1570mm, 2000mm |
| Panel Thickness | 2mm 3mm 4mm 5mm 6mm |
| Aluminum Alloy | AA1100,AA3003,AA5005(Other Grade On Requirements) |
| Aluminum Skin Thickness | 0.08mm ~ 0.60mm |
| Coating | PE/PVDF/FEVE/NANO/Anti-scratch/Mill |
| PE Core | Recycle PE Core/Fireproof PE Core/Unbreakable PE Core |
| Color | Solid/ Glossy/Matt/Metallic/Marble/Wooden/Brush/Mirror/Embossed |
| Length | 5800mm in maximum for 20ft container |
| Delivery | 15 to 20 days after order confirmed and receiving deposit |
| MOQ | 600 to 1000 m2 per color |
| Brand/OEM | ALUWEDO®/ Customized |
| Payment Terms | T/T/ L/C at sight/Western Union |
| Packing | By bulk; In Wooden Package |
| Testing Item | Standard | Result |
| Unit Weight | ASTM D792 | T 3mm=4kg/m2 |
| Thermal Expansion | ASTM D696 | 24-28 |
| Thermal Deformation Temperature | ASTM D648 | 115℃ |
| Thermal Conduction | ASTM D976 | 0.102kcal/m.hr℃ |
| Flexural Rigidity | ASTM D393 | 14.0*10^5 |
| Impact Resistance | ASTM D732 | 1.64kgf |
| Adhesive Strength | ASTM D903 | 0.77kg/mm |
| Flexural Elasticity | ASTM D790 | 4030kg/mm2 |
| Shear Resistance | ASTM D732 | 2.7kgf/mm2 |
| Fire Propagation | ASTM E84 | Qualified |
| Wind-Pressure Resistant | ASTM E330 | Passed |
| Properties Against Water | ASTM E331 | Passed |
Description

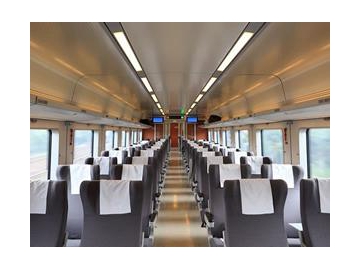

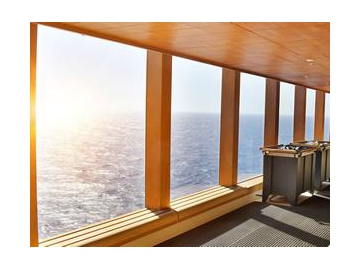

Marine and vehicle aluminum composite panel, made of Al-Mn alloy, Al-Mg alloy, and PE material. All these materials are laminated together with the help of polymeric membrane, thus offering the ACP excellent malleability and workability. The adoption of Al-Mn alloy and Al-Mg alloy well ensure the aluminum composite panel's hardness and workability. So it is quite popular in transportation field, like, truck, ship and train.
Aluwedo is a reliable marine and vehicle aluminum composite panel manufacturer and supplier, offers a wide range of interior and exterior decorative ACP panels and industrial covering ACPs for customers. From the raw material selection, panel manufacturing and surface coating, each step is under strict control, we are sure to offer quality industrial ACP panels with competitive prices.
