Key Features
  • Ambient Temperature: -20℃ to 45℃
  • Voltage: DC24V
  • Length/Reel(M/ft): 5m/16.4ft
  • Standard SMD 2835 LED strip light, 5000-6000K color temperature, brighter, cleaner cool white lighting effects
  • LED Strip light source is placed inside a silicone tube with both ends sealed to create a waterproof layer. IP65 rating

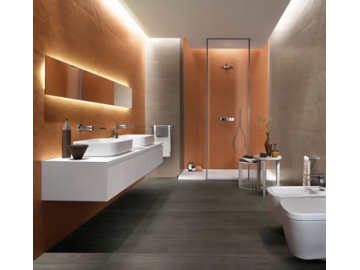

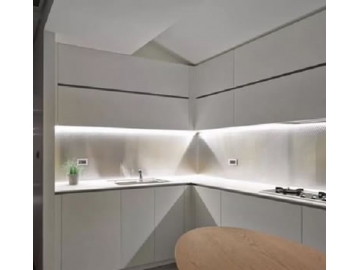

  • Ideal for bathroom, kitchen or other damp environments, great for outdoor applications in a variety of weather conditions
  • Silicone tube with an excellent cooling performance, guaranteeing strip lights to output a stable brightness even after long term operation.
  • CRI 90 and color tolerance within 3 SDCM, allowing for natural color illumination of objects
  • Luminous efficacy up to 100lm/W and energy saving performance
*Please contact our sales for the latest details and certifications
Specification

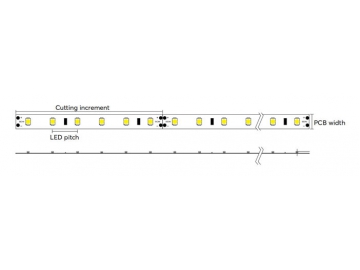

Model Led Qty Power Lumens per feet Cutting increment LED pitch PCB width
5000K 6000K
FH05W-P5-G1 28LZ9x 24V60S W08L05 60LEDs/M 4.8W/M
1.46W/ft
125lm/ft 122lm/ft 100mm
3.94inch
16.7mm
0.66inch
10mm
0.39inch
FH08W-P5-G1 28LZ9x 24V96S W08L05 96LEDs/M 7.6W/M
2.32W/ft
201lm/ft 198lm/ft 62.5mm
2.46inch
10.4mm
0.41inch
10mm
0.39inch
FH10W-P5-G1 28LZ9x 24V120S W08L05 120LEDs/M 9.6W/M
2.93W/ft
256lm/ft 250lm/ft 50mm
1.97inch
8.3mm
0.33inch
10mm
0.39inch
FH14W-P5-G1 28LZ9x 24V180S W10L05 180LEDs/M 14.4W/M
4.39W/ft
402lm/ft 390lm/ft 33.3mm
1.31inch
5.6mm
0.22inch
12mm
0.47inch
FH09W-P5-G1 28HZ9x 24V30S W08L05 30LEDs/M 8.5W/M
2.59W/ft
204lm/ft 198lm/ft 166.7mm
6.56inch
33.3mm
1.31inch
10mm
0.39inch
FH10W-P5-G1 28HZ9x 24V60S W08L05 60LEDs/M 10W/M
3.05W/ft
284lm/ft 280lm/ft 100mm
3.94inch
16.7mm
0.66inch
10mm
0.39inch
FH14W-P5-G1 28HZ9x 24V60S W10L05 60LEDs/M 14.4W/M
4.39W/ft
384lm/ft 375lm/ft 100mm
3.94inch
16.7mm
0.66inch
12mm
0.47inch
FH19W-P5-G1 28HZ9x 24V120S W10L05 120LEDs/M 19.2W/M
5.85W/ft
558lm/ft 546lm/ft 50mm
1.97inch
8.3mm
0.33inch
12mm
0.47inch
Note:'x' (CCT) ="24"(2400K) / "27"(2700K) / "30"(3000K) / "40"(4000K) / "50"(5000K) / "60"(6000K),Please contact us for more information.
