WFQ-1000H/1800H High Speed Slitting Machine

WFQ-1000H/1800H High Speed Slitting Machine
: http://printingmachinecn.com

The WFQ-1000H/1800H high speed slitting machine integrates the function of photoelectric tracking, automatic deviation correction, automatic metering, and automatic material feeding. Both the operation and the maintenance of the automatic slitting machine are quite easy. The high speed slitter can be used for processing diversified paper, film, aluminum foil, and so on.

Technical Parameters of High Speed Slitting Machine
Model WFQ-1000(H) WFQ-1800(H)
Raw Material Paper, film, aluminum foil
Material Width 1300mm 1800mm
Roller Width 1320mm 1820mm
Max. Diameter of Raw Material 1000mm 1500mm
Max. Rewinding Diameter 800mm 800mm
Slitting Speed 30-120m/min 30-120m/min
Slitting Width ≥50mm ≥50mm
Slitting Precision ≤±0.3mm ≤±0.3mm
Inner Dia. of Unwinding and Rewinding Paper Roll 74mm 74mm
Related products
WFQ-1000V/1300V Computerized Slitting Machine
WFQ-1000V/1300V Computerized Slitting Machine
Auto Slitting Machine
Auto Slitting Machine

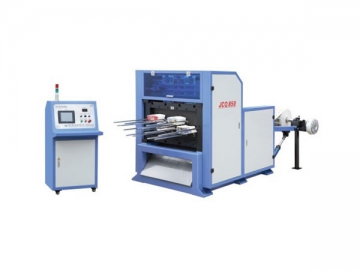

JCQ850 High Speed Punch Die Cutter
