LED Transformers--Slimline (12V DC)
Multiple power levels are available, making these transformers suitable for different voltage standards.
Features:
- Switching mode power supply
- Super slim design，only 14.5mm thickness, with a special aluminum profile case for an excellent heat dissipation and exceptional reliability.
- Protection types: short circuit/over load/over temperature
- 100% full load high temperature aging
- Highly efficient, long service life, excellent reliability
Technical parameters:
| Model | Input voltage（V AC） | Current | Efficiency | Nominal voltage | Dimension（length*width*height mm） | Power | |
| (mA) | (V DC) | (W/piece) | |||||
| SL-18-12 | 100-240 | 1.5A | ≥85% | 12V DC | 220*18*14.5 | 12W | |
| SL-24-12 | 100-240 | 2A | ≥85% | 12V DC | 220*18*14.5 | 24W | |
| SL-36-12 | 100-240 | 3A | ≥85% | 12V DC | 300*18*14.5 | 36W | |
| SL-48-12 | 100-240 | 4A | ≥85% | 12V DC | 330*18*14.5 | 48W | |
| SL-60-12 | 100-240 | 5A | ≥85% | 12V DC | 350*18*14.5 | 60W | |
| SL-72-12 | 100-240 | 6A | ≥85% | 12V DC | 447*18*14.5 | 72W | |
| | SL-200-12 | 100-240 | 16.6A | ≥85% | 12V DC | 325*58*37 | 200W |
| SL-300-12 | 100-240 | 25.0A | ≥85% | 12V DC | 325*58*37 | 300W | |
| SL-400-12 | 100-240 | 33.3A | ≥85% | 12V DC | 370*58*37 | 400W | |
| SL-500-12 | 100-240 | 41.6A | ≥85% | 12V DC | 370*58*37 | 500W | |

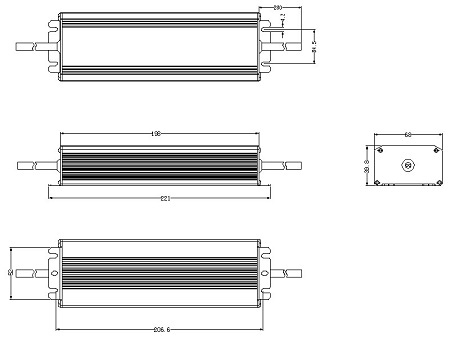

Dimension:
