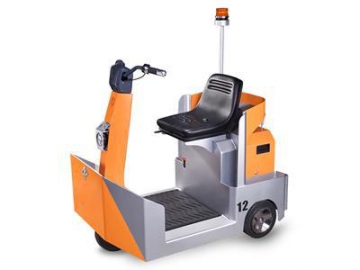

1,200kg Electric Tugger

1,200kg Electric Tugger
1,200kg Electric Tugger
1,200kg Electric Tugger
1,200kg Electric Tugger
1,200kg Electric Tugger
1,200kg Electric Tugger
1,200kg Electric Tugger
1,200kg Electric Tugger

Basic information
Rated load: 1200 kg
Operating mode: sitting type operation
HS code: 8709111000
Certificate: CE/SGS/ISO9001

Detail features

1. Motorbike handle
The electric tugger is equipped with a motorbike style handle which is intuitive and familiar to control. The operation is easy and turning is highly flexible.

2. Adjustable seat
The seat can be adjusted forward and backward so that it can be suitable for drivers of different sizes.

3. Adjustable traction pin
The length of the traction pin can be adjusted to satisfy requirements of various traction forces.

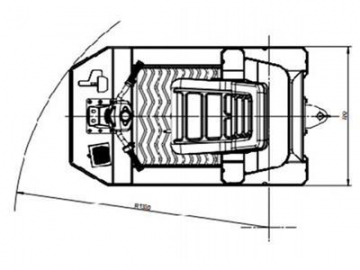

Structural Drawings
Parameters
Features
Product type XT12
Driving mode Electronic
Operating mode Sitting type
Rated load (kg) 1200
Rated traction force (N) 295
Wheel track (mm) 860
Weight
Tugger weight (with standard battery) (kg) 350
Wheel
Tyre Rubber tyre
Front wheel dimension 250 × 80
Back wheel dimension 254 × 102
Wheel number (x=driving wheel, front wheel/back wheel) 1 × /2
Front gauge (mm) 0
Track rear (mm) 630
Basic dimension
Total height (mm) 1195
Total length (mm) 1343
Total width (mm) 720
Ground clearance (mm) 75
Turning radius (mm) 1330
Performance
Moving speed full load/no load (km/h) 7/8
Brake mode Hydraulic brake
Motor
Driving motor power (kW) 1
Storage battery voltage/capacity (V/Ah) 3 × 12/80
Other
Controller CURTIS
Whole tugger noise dB (A) < 70

Index
electric towing tractor, power tugger, load puller, industrial tugger, electric pusher
