0.6/1 kV NA2XY Cable (AL/XLPE/PVC) Manufacturer

0.6/1 kV NA2XY Cable (AL/XLPE/PVC)

: http://tongdacables.com/3-2-6-1-kv-na2xy-cable.html

NA2XY cable is suitable for AC 50Hz power and distribution lines with rated voltage of 0.6/1kV, which can be used in fixed industrial power applications, underground tunnels, etc. Using steel wire armour offers great mechanical protection, making it rigid with a large radius.

Specifications
IEC 60228 Conductors
IEC 60502-1 Power cables with extruded insulation and their accessories for rated voltages from 1kV(Um=1.2kV) up to 35kV(Um=40.5kV) - Part 1: Cables for rated voltages of 1 kV(Um=1.2kV) and 3 kV(Um=3.6kV)

Construction

1 Core

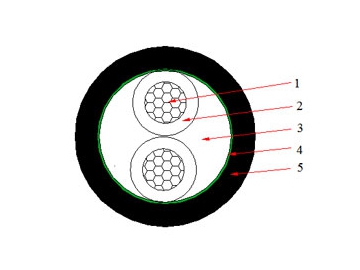

2 Core

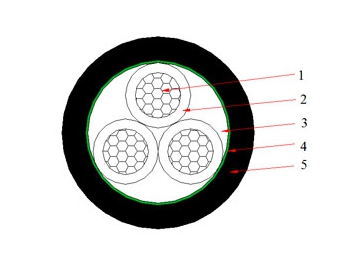

3 Core

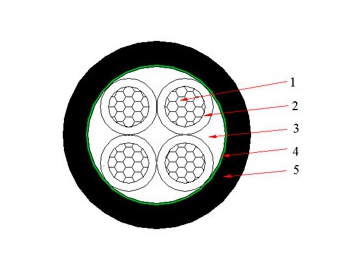

4 Core

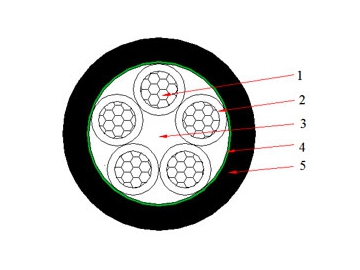

5 Core

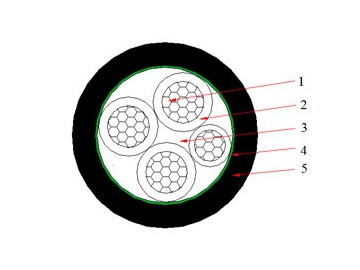

3+1 Core

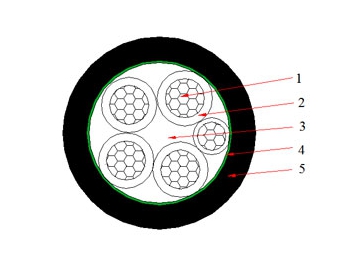

4+1 Core

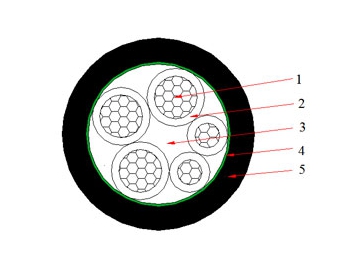

3+2 Core

Single-core	Multi core
1. Conductor: Copper or aluminum, Class 1: solid conductor, or Class 2: stranded conductor 2. Insulation: Cross-linked polyethylene XLPE 3. Outer sheath: Polyvinyl chloride PVC	1. Conductor: Copper or aluminum, Class 1: solid conductor, or Class 2: stranded conductor 2. Insulation: Cross-linked polyethylene XLPE 3. Filler: Non-hygroscopic material 4. Binder tape: Non-hygroscopic material 5. Outer sheath: Polyvinyl chloride PVC
