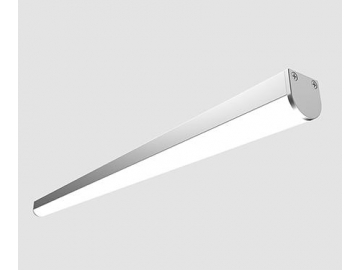

LS1911C(B) Furniture LED Light Fixture
Request a Quote
Features
- The main body of this light fixture adopts high quality AL6063-T5 aluminum and ultra-precision surface treatment process, with excellent heat dissipation performance.
- With curved diffuser, the luminous effect is full and mellow. By professional optical design, the light source plate, PC diffuser and the inner structure of the profile are in perfect match to produce homogeneous and soft lights.
- For each profile, we provide end caps with or without holes to choose.
- By "180° extender", the product can achieve combination of arbitrary length rapidly and efficiently.

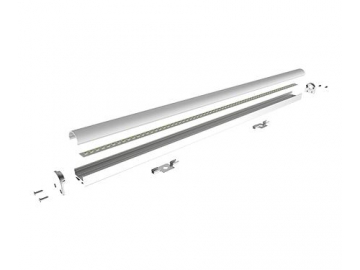

Aluminium profile components
Photoelectrics accessories
Optional accessories

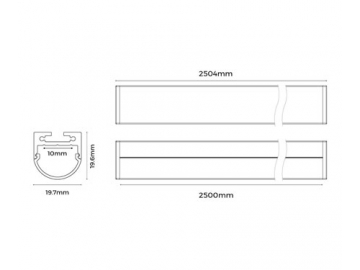

Cutting size
The free cutting size of the profile:
Lmin = (1×50mm) +(2×2mm) +8mm ①=62mm
Lmax = (49×50mm) +(2×2mm) +8mm ① =2462mm
W=21mm, H=11mm
① is used for outgoing lines.
