Alloy and Carbon Steel Eye Grab Hook
Features
● G70 eye slip hook material: forged alloy steel;
● G43 eye slip hook material: carbon steel;
● It is strictly heat treated.It can be matched with G70 or G43 chains.
● It can only be used for lashing and pulling but not lifting.
● G43: Ultimate load is 3 times the Working Load Limit.
● G70: Ultimate load is 4 times the Working Load Limit.

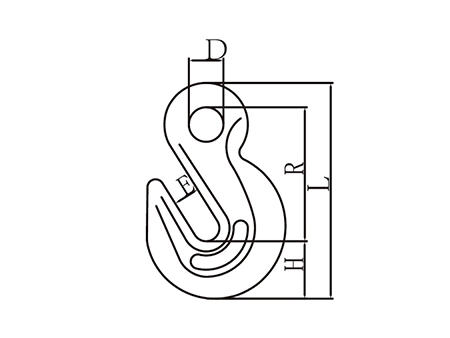

| Item code | Weight /1bs | Working load limit (1bs) | R±1 | H±1 | D±0.5 | E±0.5 | L±1 | |
| G43 | G70 | |||||||
| SLR125-1/4 | 0.28 | 2600 | 3150 | 50.5 | 18.5 | 13 | 9 | 77 |
| SLR125-5/16 | 0.45 | 3900 | 4700 | 56.8 | 22.7 | 14 | 11.5 | 89 |
| SLR125-3/8 | 0.79 | 5400 | 6600 | 65.2 | 28.3 | 17 | 13 | 104 |
| SLR125-7/16 | 1.26 | 7200 | 8750 | 77 | 33.5 | 20 | 15.5 | 122 |
| SLR125-1/2 | 1.75 | 9200 | 11300 | 85.5 | 37.5 | 22 | 17 | 135 |
| SLR125-5/8 | 3.25 | 13000 | 15800 | 116 | 45 | 30 | 21 | 180 |
| SLR125-3/4 | 5.94 | 20200 | 24700 | 133.5 | 55 | 35 | 25 | 211 |
