Cast aluminum fixed mount motor bracket, type A
Model L L1 H L2 d1 E E1 E2 L3 L4 L5 h±0.025 d2 d3 A B M M1 M2
LKZ50A 63 50 38.5 43 3.3 10 1.36 24 35 11 2.5 16 24 27 - 33 - 4-M3 4-M3
LKZ60A 61.5 60 45 52 3.3 12.5 6 24 32 10 2.5 23 28 32 40 40 4-M3 4-M4 4-M4
LKZ86A 88 86 63 75 4.4 18.5 8 74 51.5 14 3.5 31 46 50 60 70 4-M4 4-M5 4-M4
LKZ100A 94 100 72 88 5.5 19 6 64 45.5 22 - 31 50 - - 70 - 4-M5 4-M4
Cast aluminum fixed mount motor bracket, type B
Model L L1 H L2 L3 L4 L5 L6 L7 h±0.025 d1 d2 d3 d4 h1 A B M M1 M2
LKZ50B 63 75 38.5 62 35 11 2.5 50 51 16 4.4 24 27 8 1.5 - 33 - 4-M3 4-M3
LKZ60B 61.5 89 45 76 32 10 2.5 60 47.5 23 5.4 28 32 10 1.5 40 40 4-M3 4-M4 4-M4
LKZ86B 88 113 63 100 51.5 14 3.5 86 74 31 5.4 46 50 9 1.5 60 70 4-M4 4-M5 4-M4
LKZ100B 94 107 72 92 45.5 22 - 75 78 31 6.5 50 - 11 2 - 70 - 4-M5 4-M4

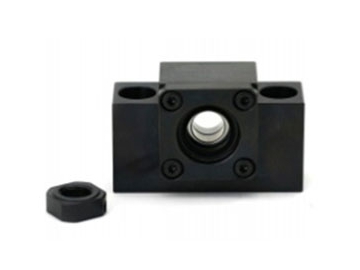

Cast iron fixed mount motor bracket
Model d B D D1 PCDA F M L L1 L2 E E1 E2 h±0.025 W1 W2 d1 d2 d3
CLKZ90-BK15-F1 15 90 70 47 90 5 4-M5 114 69 12 34 52 15 28 43 58 - 6.6 11
CLKZ90-BK15-F2 4-M6
CLKZ130-BK20-F1 20 130 80 75 100 7 4-M6 151 79 20 37 26 - 34 75 102.5 10 10.5 18
CLKZ130-BK20-F2 95 115 4-M6
CLKZ130-BK20-F3 95 115 4-M8
CLKZ180-BK25-F1 25 180 110 88 130 7 4-M8 180 101 25 43 35 - 48 120 150 12 13 20
CLKZ180-BK25-F2 145 4-M8
CLKZ130-BK30-F1 30 180 114.3 102 200 8 4-M12 224 135 30 65 37.5 - 51 120 150 12 13 20
GZLINK produces a variety of products, including disc couplings, slit couplings, jaw couplings, flexible couplings, ball screw support units and motor bracket. Our products are RoHS certified and sold to thousands of companies in America, Japan, and Singapore, etc. Users can browse our product list to find couplings, or contact us about customization services.
