High-Adhesion Double-Sided Tape, MZ-9715

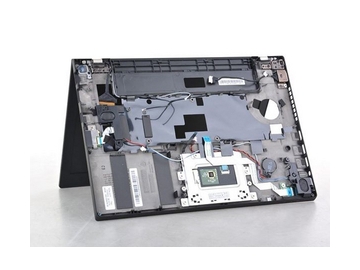

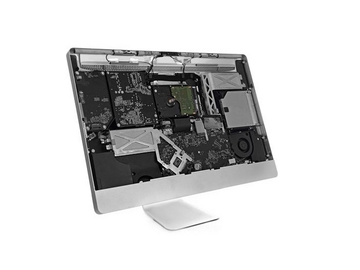

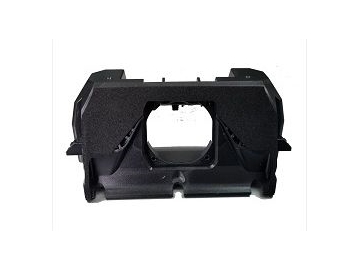

MZ – 9715 high-adhesion double-sided tape is suitable for fixation of foam gasket on electronic component; label, name plate, panel, etc. on electronic device and home appliance; binding of components of TV set, computer, speaker, etc.
1240mm*50mm/PCS, packaging dimensions L1340mm*W200mm*T200mm.
Product StructureRelease paper
Paper substrate with double-sided adhesive
Release paper
Property | Unit | Value | Testing method |
Substrate thickness | mm | 0.025±0.003 | GB/T 7125-1999 |
Total thickness | mm | 0.15±0.005 | GB/T 7125-1999 |
Initial adhesion | Steel ball size# | 4-9 | GB/T 4852-2002 |
180° peel strength | N/25mm | 22-32 | GB/T 2792-1998 |
180° Peel strength (after in high-temperature environment) | N/25mm | ≥20 | GB/T 2792-1998 |
Adhesion durability | H | ≥72 | GB/T 4851-1988 |
Heat resistance | ℃ ∕ 30min | -10~150 | -- |
High-temperature performance test | 330℃ ∕ 30min | < 15% deformation | GB/T 2792-1998 |
Adhesive color (after in high-temperature environment) | - | Light yellow | Visual |
Explore More Adhesive Tapes
Mingzhan is a professional adhesive product manufacturer located in Guangdong province, China, providing industrial tapes including conductive tape, EMI shielding tape, heat-resistant tape, flame retardant tape, thermally conductive tape, copper foil tape, aluminum foil tape, PET tape, reusable double-sided tape, etc.
