Hydraulic Rolling Machine With 4 Rollers Manufacturer

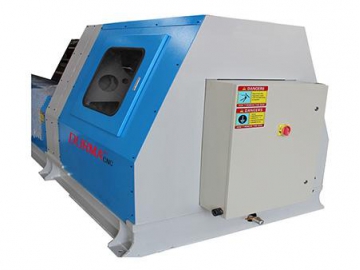

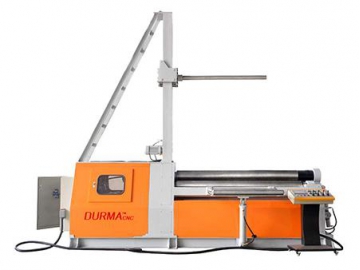

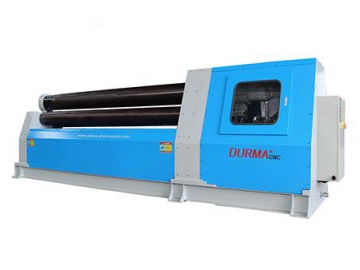

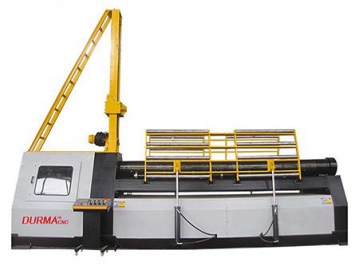

Hydraulic Rolling Machine With 4 Rollers

: http://cnc-lasercutting.com

The hydraulic rolling machine with 4 rollers bends metal plates into different structures, such as a barrel, arc, or partially conical. It features a better pre-bending function compared to the hydraulic symmetric rolling machine with 3 rollers, and is widely used in ship industries, oil industries, chemical engineering, manufacturing machinery, boilers, and more.

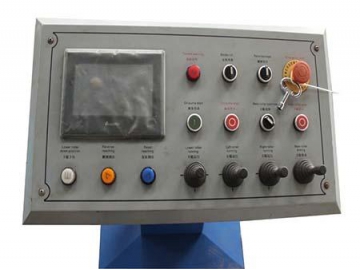

Features

According to 3 point forming circle principles, the rolling machine produces barrels with a variety of different radiuses. The straight-line edge from pre-bending, and the barrel circle perfection are better than the hydraulic symmetric rolling machine with 3 rollers.

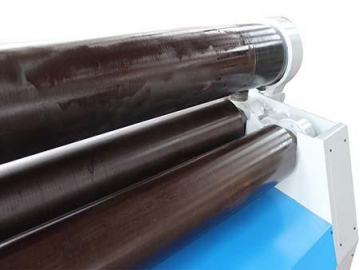

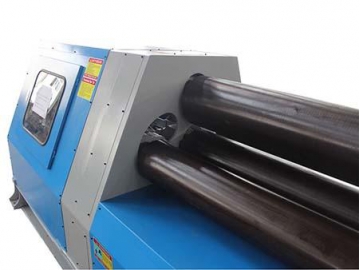

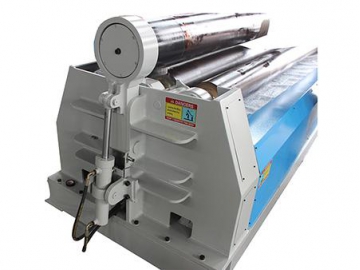

The upper roller’s position is fixed, and the lower roller moves up and down for metal plate clamping. The two side rollers also move up and down to adjust the metal plate curvature.
This equipment not only eliminates the need for any pre-bending, but the remaining straight-line edge and high work efficiency ensure a coarse plate leveling.

Parameters

Max. Roll Thickness (mm)	Max. Roll Width (mm)	Plate yield limit (MPa)	Rolling Speed (m/min)	Fully loaded with minimum boards Diameter (mm)	Top Roller Diameter (mm)	Bottom Roller Diameter (mm)	Lateral Roller Diameter (mm)	Lateral Roller Movable Distance (mm)	Lateral Roller Moving Speed (m/min)	Motor Power (kw)
25	2000	245	4	800	350	320	280	240	80	22
20	2500	245	4	640	350	320	280	240	80	30
30	2000	245	4	1000	400	360	300	240	80	37
25	2500	245	4	800	400	360	300	240	80	37
35	2000	245	4	1200	420	380	330	210	80	37
30	2500	245	4	1000	400	360	320	230	80	37
40	2000	245	4	1400	480	400	340	420	80	45
45	2000	245	4	1600	500	450	400	380	80	45
35	2500	245	4	1200	480	400	340	420	80	45
40	2500	245	4	1400	500	450	400	380	80	45
45	2500	245	4	1600	530	480	420	450	80	63
35	3000	245	4	1200	500	450	400	380	80	45
45	3000	245	4	1600	560	500	450	450	80	63
55	2500	245	4	2000	600	550	480	500	78	75
55	3000	245	4	2000	620	560	490	500	78	75
65	3000	245	4	2400	670	600	530	550	78	110

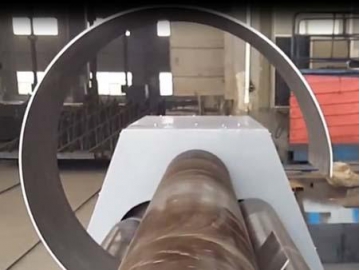

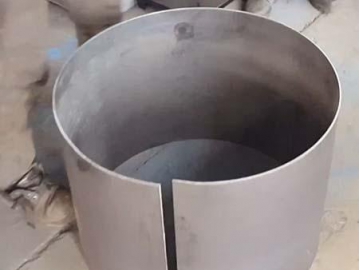

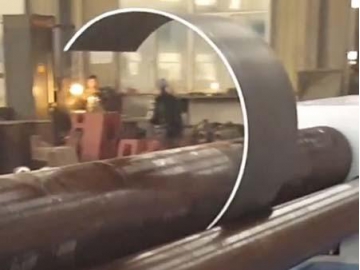

Samples of plates after rolling
