The SMART-HMS330 label machine can offer a cost-effective solution for label slitting, rewinding and 100% offline inspection.

Features of the SMART-HMS330 Label Inspection Machine

1. An optical camera detects and records all defects during the rewinding process.
2. A quality data management system, also called PrintFlow Manager, works with rewinder to remove defects.
3. Automatic inspection system supports defect inspection and final report editing.
4. Data synchronization between inspection system and Won series rewinder enables easy removal and replacement of the defective labels. Then, slitting or sheeting is conducted to ensure a quality label finishing process.

Technical Parameters
Model HMS-330 HMS420 HMS520
Max. Speed 300m/min
Max. Web Width 330mm 420mm 520mm
Max. Unwinder Dia. φ700mm
Max. Rewinder Dia. φ700mm
Inspected Width 330mm 420mm 520mm
Power Supply 3PH N PE
Air Supply 0.8MPa
Weight 1.5T
Overall Dimension 2900x1000x1400mm

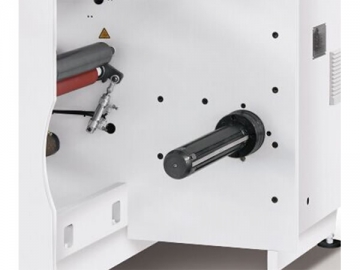

Unwinder
1. Taper tension control
2. Easy to preset
3. Decelerate or stop when less roll is detected
4. Web guide with an ultrasonic sensor

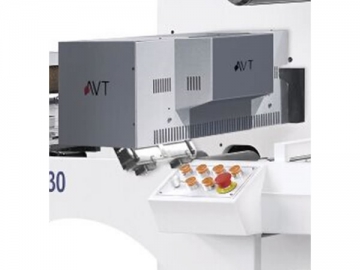

  • AVT Helios automatic inspection system comes with modular add-on system and supports the new generation of camera or light. It is used to inspect the laser label at speeds up to 180m/min.
  • Optional motor with adjustable speed drive

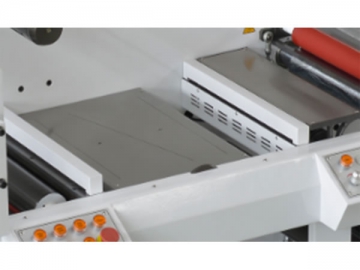

  • Mobile inspection platform with two-sided clamps

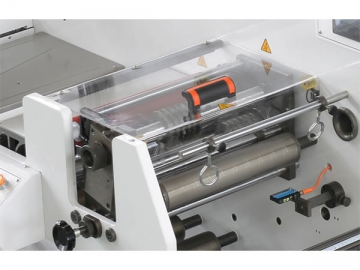

  • Easy-to-install mobile shear slitting equipment, standard high pressure waste suction system, plus optional razor blade

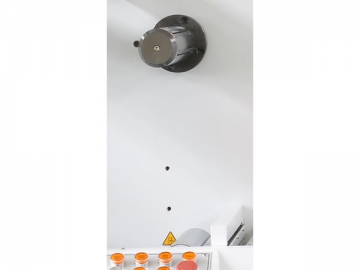

  • Independent servo-driven rewinder shifts in clockwise and anti-clockwise direction. Slitting precision is guaranteed in the turret rewinding process.

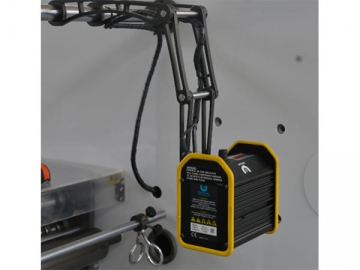

  • Optional stroboscope for visual inspection
