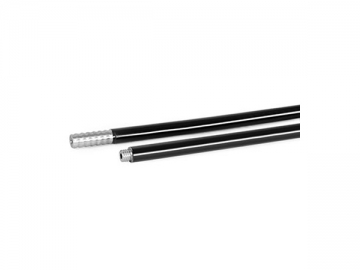

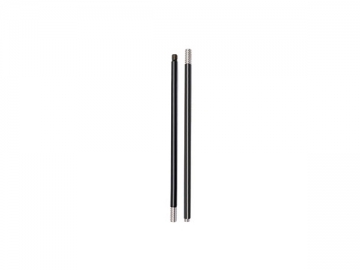

Taphole Drill Rod
It was widely used in large steel mill for delivering liquid steel, especially from blast furnaces.
Material/Grade: DIN CK45, JIS S45C, SAE1045, AISI1045; DIN CK20, JIS S20C, SAE1020, AISI1020, ASTM A106B, ASTM A53B, ST45, ST42.
Diameter: hex.19mm-32mm, Dia.32mm-51mm
Wall thickness: 11mm-14mm (0.43-0.55)
Length: 1.0m-6m
We provide customized design, production and service according to the needs of our international clients.
| Description | Length | Diameter | Part No. | ||
| mm | in | mm | in | ||
| 1830 | 6' | 32 | 1 1/4" | MT32-18 H25L | |
| 2435 | 8' | 32 | 1 1/4" | MT32-24 H25L | |
| 3050 | 10' | 32 | 1 1/4" | MT32-30 H25L | |
| 3660 | 12' | 32 | 1 1/4" | MT32-36 H25L | |
| 3830 | 12'6" | 32 | 1 1/4" | MT32-38 H25L | |
| 4300 | 14'1" | 32 | 1 1/4" | MT32-43 H25L | |
| 1830 | 6' | 38 | 1 1/2" | MT38-18 D30L | |
| 2435 | 8' | 38 | 1 1/2" | MT38-24 D30L | |
| 3050 | 10' | 38 | 1 1/2" | MT38-30 D30L | |
| 3660 | 12' | 38 | 1 1/2" | MT38-36 D30L | |
| 3830 | 12'6" | 38 | 1 1/2" | MT38-38D30L | |
| 4300 | 14'1" | 38 | 1 1/2" | MT38-43 D30L | |
| Description | Length | Diameter | Part No. | ||
| mm | in | mm | in | ||
| 3500 | 11'6" | 32 | 1 1/4" | MW32-35L | |
| 4270 | 14' | 32 | 1 1/4" | MW32-42L | |
| 4420 | 14'6" | 32 | 1 1/4" | MW32-44L | |
| 5000 | 16'4" | 32 | 1 1/4" | MW32-50L | |
| 5400 | 17'7" | 32 | 1 1/4" | MW32-54L | |
| 6000 | 19'8" | 32 | 1 1/4" | MW32-60L | |
| 3500 | 11'6" | 38 | 1 1/2" | MW38-35L | |
| 4270 | 14' | 38 | 1 1/2" | MW38-42L | |
| 4420 | 14'6" | 38 | 1 1/2" | MW38-44L | |
| 5000 | 16'4" | 38 | 1 1/2" | MW38-50L | |
| 5400 | 17'7" | 38 | 1 1/2" | MW38-54L | |
| 6000 | 19'8" | 38 | 1 1/2" | MW38-60L | |
| Description | Length | Diameter | Part No. | ||
| mm | in | mm | in | ||
| 1830 | 6' | 32 | 1 1/4" | ME32-18R32/H25 | |
| 2435 | 8' | 32 | 1 1/4" | ME32-24R32/H25 | |
| 3050 | 10' | 32 | 1 1/4" | ME32-30R32/H25 | |
| 3660 | 12' | 32 | 1 1/4" | ME32-36R32/H25 | |
| 3830 | 12'6" | 32 | 1 1/4" | ME32-38R32/H25 | |
| 4300 | 14'1" | 32 | 1 1/4" | ME32-43R32/H25 | |
| 1830 | 6' | 38 | 1 1/2" | ME38-18R38/R38 (ME38-18R38 / D30) | |
| 2435 | 8' | 38 | 1 1/2" | ME38-24R38/R38 (ME38-24R38 / D30) | |
| 3050 | 10' | 38 | 1 1/2" | ME38-30R38/R38 (ME38-30R38 / D30) | |
| 3660 | 12' | 38 | 1 1/2" | ME38-36R38/R38 (ME38-36R38 / D30) | |
| 3830 | 12'6" | 38 | 1 1/2" | ME38-38R38/R38 (ME38-38R38 / D30) | |
| 4300 | 14'1" | 38 | 1 1/2" | ME38-43R38/R38 (ME38-43R38 / D30) | |
