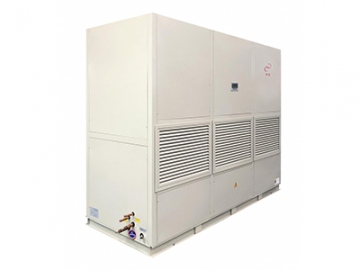

HVAC Air Conditioner（Constant Air Temperature and Humidity Controlled） Manufacturer

HVAC Air Conditioner（Constant Air Temperature and Humidity Controlled）

: http://indusdryoven.com/2-4-environmental-test-chamber.html

Constant air volume HVAC air conditioner is able to accurately control the humidity indoor within a proper range, especially suitable for situations that are with strict requirement in humidity controlling, such as museum, archive, pharmaceutical factory, printing house, etc. WARM’s constant air volume HVAC air conditioner features ±1℃ of temperature control accuracy, 5%RH of humidity control accuracy, is able to perfectly satisfy customer’s needs, and also customizable according to customer’s requirements.

Features

Constant air volume HVAC air conditioner features 18～25℃ of temperature control range, 50～70% of humidity control range, suitable for -7~43℃ of environmental temperature.
Device body applies galvanized steel plain sheet material, which features solidity and rust resistance.
Unit equips high/low voltage protector, compressor overload protector, phase loss protector, etc., features stable performance.

WMVH10

Nominal Cooling Capacity	10.2kW
Auxiliary Heating Capacity	6kW
Standard Air Flow Rate	2100m³/H
Unit Static Pressure	30Pa
Cooling Input Power	3.8KW
Power Supply	3/380/50ph/V/Hz
Cryogen	R32/R410A/R22
Indoor Unit Size	830mm500mm1840mm
Indoor Unit Weight	160KG
Outdoor Unit Size	995mm420mm1340mm
Outdoor Unit Weight	140KG

WMVH12

Nominal Cooling Capacity	12.6kW
Auxiliary Heating Capacity	7.8kW
Standard Air Flow Rate	2500m³/H
Unit Static Pressure	30Pa
Cooling Input Power	4.7KW
Power Supply	3/380/50ph/V/Hz
Cryogen	R32/R410A/R22
Indoor Unit Size	830mm500mm1840mm
Indoor Unit Weight	180KG
Outdoor Unit Size	995mm420mm1340mm
Outdoor Unit Weight	160KG

WMVH15

Nominal Cooling Capacity	15.3kW
Auxiliary Heating Capacity	9kW
Standard Air Flow Rate	3200m³/H
Unit Static Pressure	30Pa
Cooling Input Power	5.7KW
Power Supply	3/380/50ph/V/Hz
Cryogen	R32/R410A/R22
Indoor Unit Size	830mm500mm1840mm
Indoor Unit Weight	200KG
Outdoor Unit Size	995mm420mm1340mm
Outdoor Unit Weight	180KG

WMVH20

Nominal Cooling Capacity	20.5kW
Auxiliary Heating Capacity	12kW
Standard Air Flow Rate	4800m³/H
Unit Static Pressure	50Pa
Cooling Input Power	7.6KW
Power Supply	3/380/50ph/V/Hz
Cryogen	R32/R410A/R22
Indoor Unit Size	1300mm720mm1862mm
Indoor Unit Weight	220KG
Outdoor Unit Size	856mm804mm1224mm
Outdoor Unit Weight	300KG

WMVH25

Nominal Cooling Capacity	26.2kW
Auxiliary Heating Capacity	15kW
Standard Air Flow Rate	5500m³/H
Unit Static Pressure	50Pa
Cooling Input Power	9.8KW
Power Supply	3/380/50ph/V/Hz
Cryogen	R32/R410A/R22
Indoor Unit Size	1300mm720mm1862mm
Indoor Unit Weight	250KG
Outdoor Unit Size	956mm853mm1274mm
Outdoor Unit Weight	3501KG

WMVH30

Nominal Cooling Capacity	31.2kW
Auxiliary Heating Capacity	18kW
Standard Air Flow Rate	6500m³/H
Unit Static Pressure	300Pa
Cooling Input Power	11.8KW
Power Supply	3/380/50ph/V/Hz
Cryogen	R32/R410A/R22
Indoor Unit Size	1500mm720mm1632mm
Indoor Unit Weight	280KG
Outdoor Unit Size	956mm853mm1274mm
Outdoor Unit Weight	380KG

WMVH40

Nominal Cooling Capacity	40kW
Auxiliary Heating Capacity	27kW
Standard Air Flow Rate	8500m³/H
Unit Static Pressure	300Pa
Cooling Input Power	15.3KW
Power Supply	3/380/50ph/V/Hz
Cryogen	R32/R410A/R22
Indoor Unit Size	1500mm720mm1632mm
Indoor Unit Weight	320KG
Outdoor Unit Size	1372mm805mm1354mm
Outdoor Unit Weight	500KG

WMVH50

Nominal Cooling Capacity	50kW
Auxiliary Heating Capacity	32kW
Standard Air Flow Rate	11500m³/H
Unit Static Pressure	300Pa
Cooling Input Power	19.2KW
Power Supply	3/380/50ph/V/Hz
Cryogen	R32/R410A/R22
Indoor Unit Size	1800mm800mm1850mm
Indoor Unit Weight	420KG
Outdoor Unit Size	1804mm956mm1616mm
Outdoor Unit Weight	580KG

WMVH60

Nominal Cooling Capacity	60kW
Auxiliary Heating Capacity	38kW
Standard Air Flow Rate	12500m³/H
Unit Static Pressure	300Pa
Cooling Input Power	23.1KW
Power Supply	3/380/50ph/V/Hz
Cryogen	R32/R410A/R22
Indoor Unit Size	1800mm800mm1850mm
Indoor Unit Weight	480KG
Outdoor Unit Size	1804mm956mm1616mm
Outdoor Unit Weight	600KG

WMVH80

Nominal Cooling Capacity	80kW
Auxiliary Heating Capacity	42kW
Standard Air Flow Rate	17500m³/H
Unit Static Pressure	350Pa
Cooling Input Power	30.8KW
Power Supply	3/380/50ph/V/Hz
Cryogen	R32/R410A/R22
Indoor Unit Size	2250mm850mm2000mm
Indoor Unit Weight	550KG
Outdoor Unit Size	2000mm1100mm2047mm
Outdoor Unit Weight	850KG

WMVH100

Nominal Cooling Capacity	100kW
Auxiliary Heating Capacity	55kW
Standard Air Flow Rate	21000m³/H
Unit Static Pressure	350Pa
Cooling Input Power	38.5KW
Power Supply	3/380/50ph/V/Hz
Cryogen	R32/R410A/R22
Indoor Unit Size	2250mm850mm2000mm
Indoor Unit Weight	580KG
Outdoor Unit Size	2000mm1100mm2047mm
Outdoor Unit Weight	900KG

WMVH120

Nominal Cooling Capacity	120kW
Auxiliary Heating Capacity	65kW
Standard Air Flow Rate	25000m³/H
Unit Static Pressure	350Pa
Cooling Input Power	46.2KW
Power Supply	3/380/50ph/V/Hz
Cryogen	R32/R410A/R22
Indoor Unit Size	2250mm850mm2000mm
Indoor Unit Weight	680KG
Outdoor Unit Size	2200mm2000mm2183mm
Outdoor Unit Weight	1300KG

Solution for HVAC Air Conditioner（Constant Air Temperature and Humidity Controlled）
WARM is a professional Evaporative Heating and Cooling System manufacturer, we provide multiple types of HVAC Air Conditioner（Constant Air Temperature and Humidity Controlled）s for customers to choose, besides HVAC Air Conditioner（Constant Air Temperature and Humidity Controlled）, we also provide cooling equipment including Air Conditioner Modular Unit，Direct Evaporative Air Conditioning, etc. Please if you need.
