AC 60 Series

AC 60 Series
AC 60 Series
AC 60 Series
AC 60 Series
: http://fsmicromotor.com
, AC 60 Series

Applications: heating units, electric fireplace, oven, exhaust fan, etc
Turbine diameter: 60mm
Turbine length: 180mm, 240mm, 300mm, 360mm (customizable)
Insulation level: B, F, H
Exported to: United States, Canada, Poland, Germany, etc
MOQ: 5000PCS/PO

Parameters
Model Voltage (V) Frequency (Hz) Maximum Input Power (W) Maximum Discharge (m ³/h) Rotating Speed (RPM) Noise (dB)
PLD6113.5-GL60180 230 50 17 70 1600 45
PLD6116-GL60180 230 50 23 130 1400 45
PLD6120-gl60240 230 50 33 170 1700 48
PLD6125-GL60300 230 50 28 200 1400 43
PLD6130-GL60360 230 50 45 250 1400 44

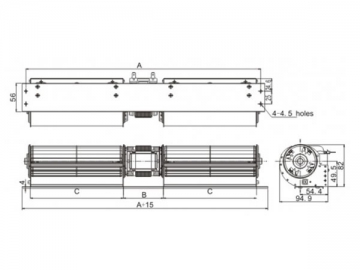

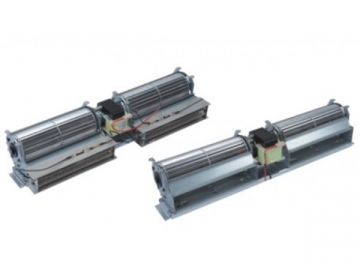

, AC 60-2 Series

Application: cooling units, air curtain, ventilation products
Turbine diameter: 60mm，
Turbine length: 180mm, 240mm, 300mm (customizable)
Insulation level: B, F, H
Exported to: United States, Canada, Poland, Germany, etc
MOQ: 5000PCS/PO

Parameters
Model Voltage (V) Frequency (Hz) Maximum Input Power (W) Maximum Discharge (m ³/h) Rotating Speed (RPM) Noise (dB)
PLD6330-GL60180-2 230 50 28 150 2000 45
110 60 32 185 2500 48
PLD6330-GL60240-2 230 50 33 180 1800 43
110 60 38 200 2000 46
PLD6340-GL60300-2 230 50 40 225 1800 42
110 60 45 250 2000 46
