Dot Line Ultrasonic Sewing Quilting Machine Manufacturer

Dot Line Ultrasonic Sewing Quilting Machine

: http://ultrasonicsew.com/3-3-dot-line-sewing-quilting-machine.html

Application
This dot line sewing quilting machine utilizes ultrasound technology to complete no-needle, no-thread operations. It can carry out bonding for laminations of chemical fiber fabrics, non-woven fabrics, gush glue cotton, and artificial leather.

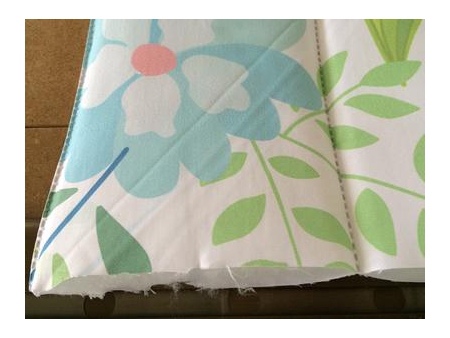

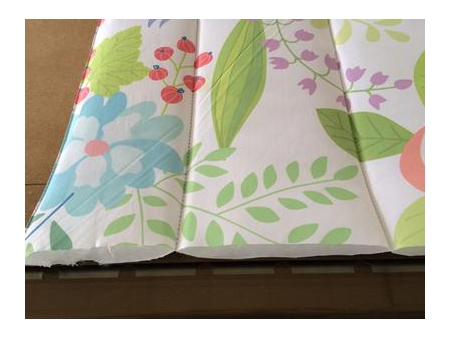

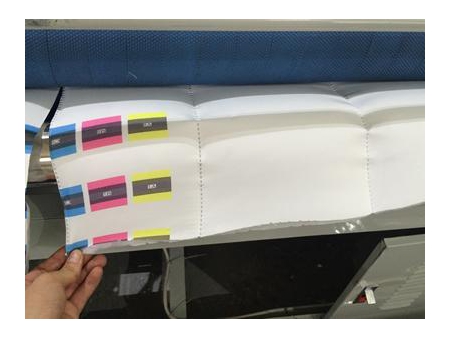

Samples

Parameters

Power supply	380V
Input power	6KW
Max. unwinding diameter	600mm
Working width	1600mm~2600mm
Max. speed	20m/min
Dimensions(length×width×height)	400040001900mm
Net weight	2000KG

Features

The quilted fabrics are smooth and neat, no burning, no color change.
The equipment structure is stable and solid, with high stability during high speed operation, effectively improving the durability as well as the service life.
The quilting speed is controlled by converter motor and can be adjusted at random. The quilting spacing of dotted lines can be arbitrarily adjusted, with a minimum of 10 cm.
On both sides of the discharging material are equipped with ultrasonic side cutting device to cut off excess fabric on both sides.
The rewinding device can be configured with twin-roller or air shaft.
The ultrasonic dot line sewing quilting machine can also be served as an ultrasonic slitting machine.
The quilting styles are diversified, such as: single row dots, double row dots, single row dotted lines, double row dotted lines.
