Heat-Resistant Double-Sided Tape, MZ-9755A
MZ-9755A heat-resistant double-sided tape features a translucence look, offers great heat-resistant performance and long-term adhesion stability, when applied on FPC, its high initial adhesion could be maintained after high-temperature reflow soldering.
1240mm*50mm/PCS, packaging dimensions L1340mm*W107mm*T170mm.
Product Structure90g white-mesh silicone paper
28u heat-resistant adhesive
12u non-woven fabric
28u heat-resistant adhesive

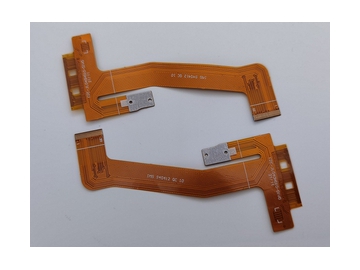

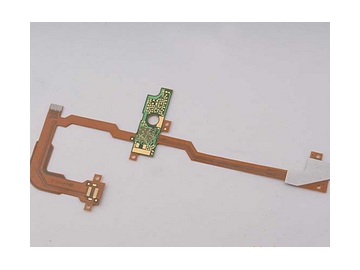

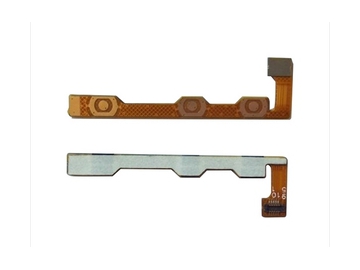

Bindings of electronic components, where good heat-resistant performance is required, such as mobile phone internal structure, FPC, etc.
| Property | Unit | Value | Testing method |
| Substrate thickness | mm | 0.012±0.005 | GB/T 7125-1999 |
| Total thickness | mm | 0.06±0.005 | GB/T 7125-1999 |
| Initial adhesion | Steel ball size# | 4-10 | GB/T 4852-2002 |
| 180° peel strength | N/25mm | 15-25 | GB/T 2792-1998 |
| 180° Peel strength (after in high-temperature environment) | N/25mm | ≥15 | GB/T 2792-1998 |
| Adhesion durability | H | ≥72 | GB/T 2792-1998 |
| Heat resistance | ℃ ∕ 30min | -10～330 | -- |
| High-temperature performance test | 330℃ ∕ 30min | < 15% deformation | GB/T 2792-1998 |
| Adhesive color (after in high-temperature environment) | - | Light yellow | Visual |
