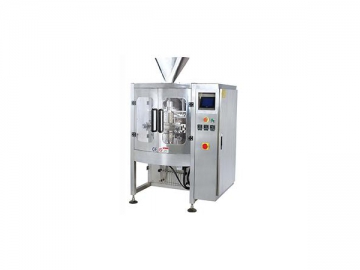

Liquid & Paste Weighing Filling Sealing Packaging Machine
Application
The liquid & paste weighing filling sealing packaging machine is used for packaging common liquid products such as milk, juice and soda at a speed of 5 to 60 bags/minute and a weight of 100 to 2000g.
| Type | JAIV-4230 |
| Bag length | 60-300mm(L) |
| Bag width | 60-200mm(W) |
| Max width of roll film | 420mm |
| Packing speed | 5-60bags/min |
| Measuring range | 100-2000g |
| Air pressure | 0.65mpa |
| Air consumption | 0.3m3/min |
| Power voltage | 220VAC/50Hz |
| Power | 2.2KW |
| Dimension | 1080(L) X1300 (W) X 1400(H)mm |
| Net weight | 500Kg |

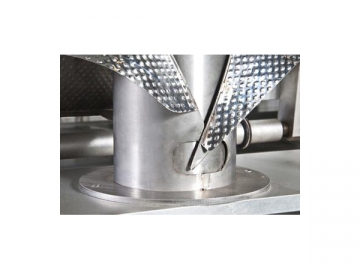

- Forming shoulder

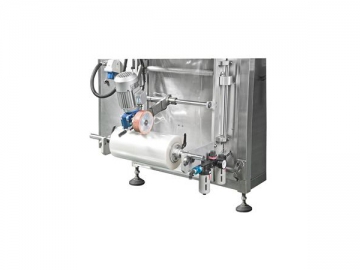

- Film tension
- Film transport
- The touch screen on the packaging machine is simple and easy to operate.
- The PLC computer control system of the vertical packaging machine ensures operation is stable, and allows users to adjust any parameters without having to stop the equipment.
- Up to 10 parameter sets can be saved on the equipment system, allowing users to easily change bag varieties when needed.
- To ensure an accurate positioning, the packaging machine uses a servo motor to do film tension.

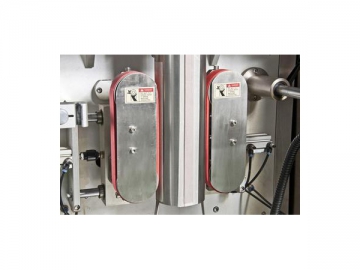

- The sealing machine uses an independent temperature control system with an accuracy to within 1°C.
- The temperature of both horizontal sealing and vertical sealing are controlled in order to work with different packaging materials, such as composite film or PE film.
- There are various packaging styles available, including back seals, gussets, chain bags, punching and more.
- Bag production, sealing, packaging, and date printing are all done in one continuous process.
