Low Pressure Zinc Plated Brass Sight Glass, with Male Pipe Thread

Low Pressure Zinc Plated Brass Sight Glass, with Male Pipe Thread
Low Pressure Zinc Plated Brass Sight Glass, with Male Pipe Thread
  • Zinc plated brass body
  • with Reflector
  • Buna N seal
  • Max. working temperature up to 250 °F (121 °C).

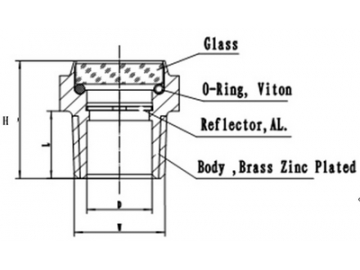

Inch/Metric (mm)
Item # W H L D S Max.psi @70°F(21°C)
93334-025 1/4" 0.91(23.11) 0.53(13.46) 0.31(7.87) 0.75(19.05) 125
93334-033 3/8" 0.91(23.11) 0.53(13.46) 0.47(11.94) 0.75(19.05) 125
93334-050 1/2" 1.12(28.45) 0.67(17.02) 0.55(13.97) 0.98(24.89) 125
93334-075 3/4" 1.25(31.75) 0.75(19.05) 0.75(19.05) 1.26(32.00) 125
