Type MC Cable, Metal Clad Cable

: http://wirecablesolution.com/3-3-mc-cable.html

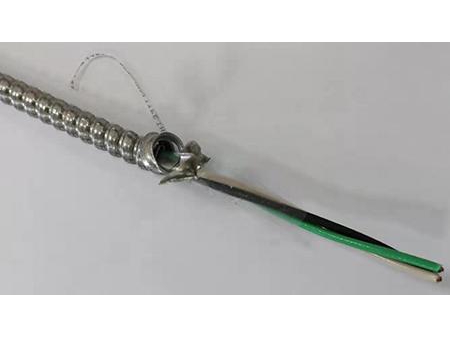

Metal clad cable is constructed with type XHHW-2 compact stranded AA-8000 series aluminum alloy conductors and sunlight, abrasion, water and heat resistant XLPE insulation. The conductors are wrapped using a binder tape and enclosed in an aluminum interlocked armor.

Type XHHW-2 MC cable is to be used at a maximum conductor temperature of 90℃ in dry, damp or wet locations. The voltage rating is 600 volts.

Applications:

MC cable can be used in feeder and branch circuits as noted in the NEC. It is also ideal for uses in industrial, commercial or residential buildings as well as in chemical industries.

Standards:

Our MC cable meets UL 1569 and UL 44 standards. It has passed the following tests: crush test, tensile test of the armor, cable density test, dielectric withstand test, FT2 flame test, insulation-resistance test, capacitance testing and other cable testings as listed in UL 1569 and UL 44.

Specifications:

Conductor Size	Nominal Cond. Diameter		Insulation Thickness		Nominal Diameter		Approx. Weight		Allowable Ampacities
（AWG or kcmil）	Inch	mm	mils	mm	mils	mm	Kg/Km	LBS/1000FT	75℃	90℃
6-6-6-6	0.169	4.29	45	1.14	821	20.8	421	283	50	55
4-4-4-6	0.213	5.41	45	1.14	906	23	521	350	65	75
2-2-2-6	0.268	6.81	45	1.14	1017	25.8	667	448	90	100
2-2-2-4	0.268	6.81	45	1.14	1033	26.2	693	465	90	100
1-1-1-4	0.299	7.59	55	1.4	1133	28.8	824	553	100	115
1/0-1/0-1/0-4	0.336	8.53	55	1.4	1208	30.7	948	637	120	135
2/0-2/0-2/0-4	0.376	9.55	55	1.4	1294	32.9	1099	739	135	150
3/0-3/0-3/0-4	0.423	10.74	55	1.4	1396	35.4	1287	865	155	175
4/0-4/0-4/0-2	0.475	12.07	55	1.4	1509	38.3	1548	1040	180	205
250-250-250-2	0.52	13.21	65	1.65	1648	41.9	1802	1211	205	230
250-250-250-3/0	0.52	13.21	65	1.65	1692	43	1953	1313	205	230
300-300-300-2	0.57	14.48	65	1.65	1756	44.6	2054	1381	230	260
350-350-350-2	0.616	15.65	65	1.65	2013	51.1	2462	1655	250	280
350-350-350-1	0.616	15.65	65	1.65	2013	51.1	2486	1671	250	280
400-400-400-1	0.659	16.74	65	1.65	2106	53.5	2747	1846	270	305
500-500-500-1	0.736	18.69	65	1.65	2271	57.7	3241	2178	310	350
500-500-500-2/0	0.736	18.69	65	1.65	2271	57.7	3309	2224	310	350
500-500-500-3/0	0.736	18.69	65	1.65	2271	57.7	3357	2256	310	350
600-600-600-1	0.813	20.65	80	2.03	2503	63.6	3853	2590	340	385
600-600-600-1/0	0.813	20.65	80	2.03	2503	63.6	3883	2610	340	385
700-700-700-1/0	0.877	22.28	80	2.03	2642	67.1	4403	2960	375	425
750-750-750-1/0	0.908	23.06	80	2.03	2708	68.8	4619	3104	385	435
750-750-750-3/0	0.908	23.06	80	2.03	2708	68.8	4704	3161	385	435
750-750-750-750	0.908	23.06	80	2.03	2887	73.3	5563	3739	385	435
900-900-900-250	0.999	25.37	80	2.03	2904	73.8	5556	3734	425	480
900-900-900-900	0.999	25.37	80	2.03	3106	78.9	6515	4378	425	480
