Hydraulic Press Brake with E200P Controller Manufacturer

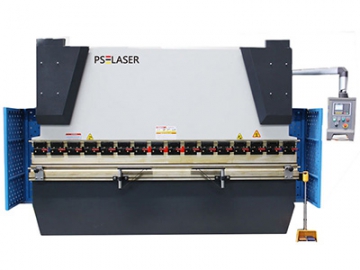

Hydraulic Press Brake with E200P Controller

: http://cnc-lasercutting.com/3-4-hydraulic-press-brake-machine.html

Key Parameters
1. WC67K standard backgauge system
2. Oil pump: SUNNY-USA
3. Hydraulic system: Bosch Rexroth-Germany
4. Laser safety system: DSP-Italy

Technical Specifications:

Type	Nominal force(KN)	Worktable length(mm)	Distance between table and ram (mm)	Depth of throat(mm)	Ram stroke (mm)	Max. open height / daylight (mm)	Max. power(kW)	Weight(kg)	Overall dimension LxWxH(mm)
40T/2000	400	2000	1350	230	100	320	5.5	2750	200012001910
40T/2500	400	2500	1850	230	100	320	5.5	3000	250012001910
50T/2000	500	2000	1350	230	100	320	5.5	2950	200012001910
50T/2500	500	2500	1850	230	100	320	5.5	3400	250012102000
63T/2500	630	2500	1900	120	100	320	5.5	4000	250013002210
63T/3200	630	3200	2560	120	100	320	5.5	4800	320013002210
80T/2500	800	2500	1990	120	100	320	7.5	5700	250014002300
80T/3200	800	3200	2560	120	100	350	7.5	6020	320015002300
80T/4000	800	4000	3000	120	100	350	7.5	7000	400015002400
100T/2500	1000	2500	2020	320	150	350	11	6000	250016002400
100T/3200	1000	3200	2600	320	150	400	11	6800	320016002600
100T/4000	1000	4000	3000	320	150	400	11	8400	400016002700
125T/2500	1250	2500	2020	320	150	350	11	6500	250016002400
125T/3200	1250	3200	2580	320	150	400	11	7200	320016002600
125T/4000	1250	4000	3000	320	150	400	11	8800	400016002700
160T/3200	1600	3200	2600	320	200	460	11	10500	320017002700
160T/4000	1600	4000	3000	320	200	460	11	11500	400017002800
160T/5000	1600	5000	4000	320	200	460	11	14000	500019003100
160T/6000	1600	6000	5000	320	200	460	11	19500	630019003200
200T/3200	2000	3200	2500	320	200	460	11	12500	320019502800
200T/4000	2000	4000	3000	320	200	460	11	13600	400019502800
200T/5000	2000	5000	4000	320	200	460	11	14500	500019503100
200T/6000	2000	6000	5000	320	200	460	11	21000	600019503300
250T/3200	2500	3200	2500	400	250	590	18.5	19000	325020003200
250T/4000	2500	4000	3000	400	250	590	18.5	20200	400020003400
250T/5000	2500	5000	4000	400	250	590	18.5	23500	500020003400
250T/6000	2500	6000	5000	400	250	590	18.5	27500	600020003400
300T/3200	3000	3200	2530	400	250	590	22	20500	320020003450
300T/4000	3000	4000	3000	400	250	590	22	22500	400020003450
300T/5000	3000	5000	4000	400	250	590	22	25000	500020003450
300T/6000	3000	6000	5000	400	250	590	22	30000	600020003450
400T/4000	4000	4000	3000	400	250	590	30	25000	400021803500
400T/5000	4000	5000	4000	400	250	590	30	29000	500021803500
400T/6000	4000	6000	5000	400	250	590	30	35000	600021803800
500T/4000	5000	4000	3000	400	250	590	45	35000	400025803500
500T/5000	5000	5000	4000	400	250	590	45	44000	505035003700
500T/6000	5000	6000	5000	400	320	590	45	55000	605035003700
600T/4000	6000	4000	3000	400	320	590	55	45000	405045003700
600T/6000	6000	6000	5000	400	320	590	55	60000	605045003700
800T/6000	8000	6000	5000	400	320	590	55	75000	630045006000

Features:

The whole EU streamlined design, heat treatment structure, high rigidity worktable, and optionally mechanical crowning device all contribute to precision bending.
Hydraulic synchronous control and Estun NC programmable logic controller ensure accurate repeatability and ease of use.
Integrated hydraulic system (Bosch Rexroth Germany) allows for automatically switching to slow bends in a quick way.
X axis and Y axis realize accurate positioning function by frequency converter through NC E21 system programming control.
Modern hydraulic control technology offers more stable machine tools and more reliable operations.
The optimal parameters and core configuration ensure stable performance and convenient operation.
WC67K standard single-axis back gauge system and single-axis bending angle system both are available. You can choose to add the V-axis crowning function, and select the appropriate mold for the bending of complex shape workpieces.

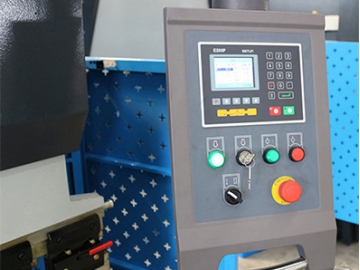

Estun E200P CNC controller:

240X128 LCD display
40 programs, 25 steps per program
X axis and Y axis double servo control
Control accuracy within 0.01mm
Unilateral positioning
Retract function
Auto retrieve function
Power-off memory
Diagnostic function
mm/inch
In Chinese/English

Standard Configuration:

Overall Welding

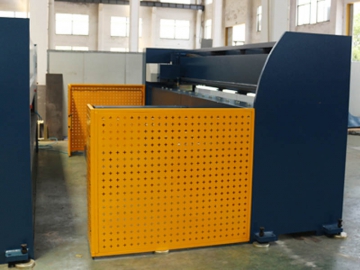

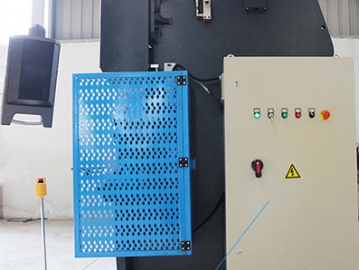

Safety Fences
Estun E200P Controller

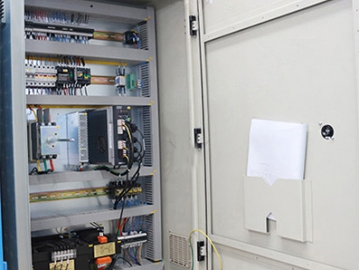

Schneider Electrics
Open Door Power Off
Light-sensitive Limit Switch

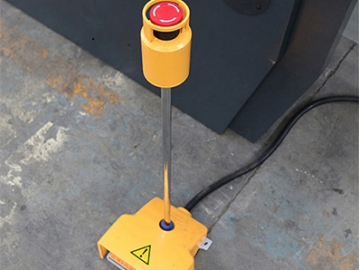

KACON Pedal Switch

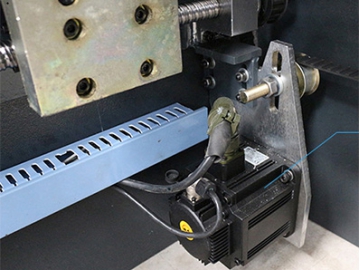

X-axis Driven by Servo Motor
Y-axis Driven by Servo Motor

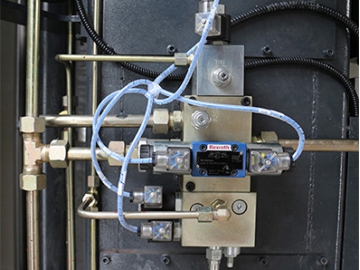

Bosch Rexroth Hydraulic Valve
PARKER/NOK Sealing Ring

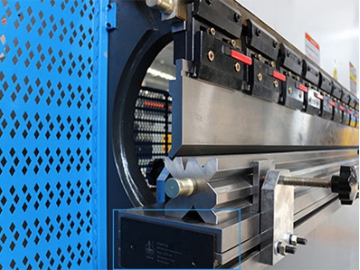

Multi-V Lower Dies

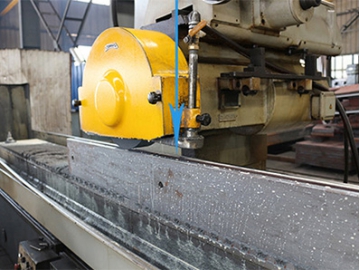

Fine Plolished Workbench

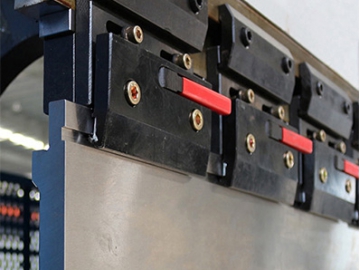

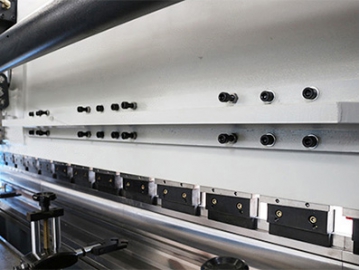

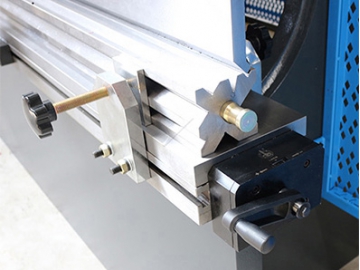

Mechaincal Quick Clamps

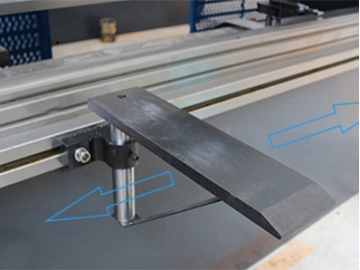

Front Supportor
Mechanical Crowing
Linearity Adjustment
Back Fence Protection
Back Emergency Stop Button

Optional Configuration:

Hydraulic Crowning
Electric Mechanical Crowning
Italy DSP Laser Production
Front Photoelectric Protection
Rear Photoelectric Protection
Bottom Die Tray
Double-V Workbench
Optional Segment Die
