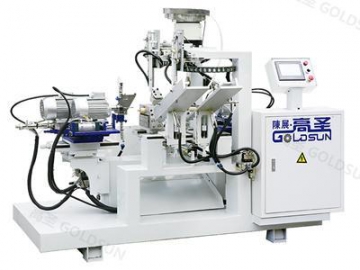

Coat Stand Main Pole Side Tapping Drilling Machine
Description

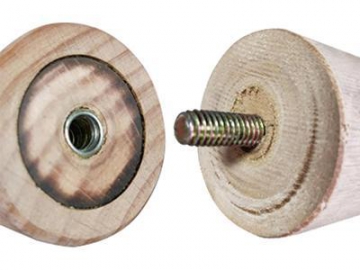

The GS-16-D coat stand main pole side tapping drilling machine is used for drilling and tapping processes to make both ends in the main wooden rod in hat and coat stands. The clamps can be customized for drilling, and tap the bottom of the stand. Loading and unloading processes are automatically operated, which will increase production efficiency. A single machine can handle up to 1,000 pieces of wood in 8 hours.
| Drilling motor | 1.5kw x 2 |
| Tapping motor | 1.5kw x 2 |
| Servo motor | 400w |
| Effective manufacturing length | 300-600mm |
| Machine size(length*width*height) | 2500×2000×1500mm |
| Weight | 600kg |

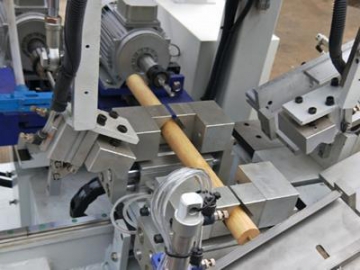

- Clamp device

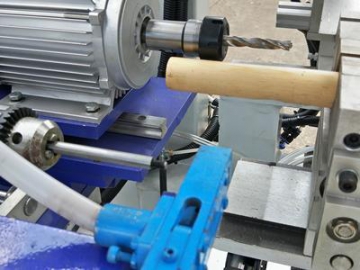

- Drilling position

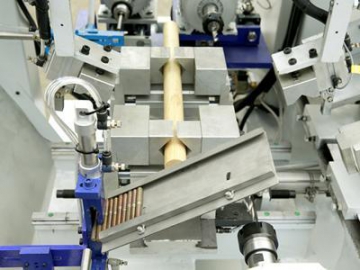

- Tapping area
- The drilling and tapping actions can be finished simultaneously, with an accurate hole position. This machine satisfies all requirements for making the bottom of hat and coat stands.
- This machine is easy to control.
- The machine is designed with a compact, space saving structure.
- The user interface is clear and easy to operate.
- The high-quality motors make the operation smooth and stable.
- The electric circuit is designed to showcase the quality and ensure the system makes operation simple and convenient.
