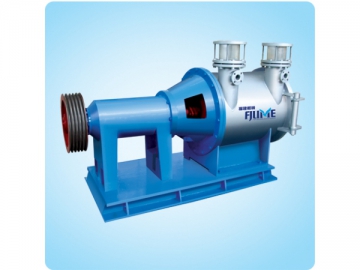

Outflow Pressure Screen
OutflowPressure Screen
The outflow pressure screen mainly applies to precise screening of variouskinds of stock. With reliable quality and competitive prices, this pulp screenis widely used in waste paper recycling, paper making industries, and is favoredby customers from many countries like Panama ,Ecuador and Saudi Arabia .
1. The outflow pressure screen features simple structure, easy operation, largeproduction capacity, low energy consumption and low operating cost.
2. The screen frame is ofhigh strength, so its service life is long.
5. The rotor’s special design makes it easy to clean the screen slot.
6. The impact time of the pulse is extended to ensure continuous operation of themachine.
7. The stock can be mixed during screening so that the stock consistency won’tbe increased.
8. The outflow pressure screen is very effective in screening impurities, especiallyobjects with glues.
Specificationsof Outflow Pressure Screen
| Model | ZSL31 | ZSL32 | ZSL33 | ZSL34 | ZSL35 | ZSL36 | ZSL37 | ZSL38 |
| Drum Size (m2) | 0.3 | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 4 |
| Inlet Consistency (%) | 0.2~3.0 | |||||||
| Screen Hole Dia (mm) | Φ1.2～Φ3 | |||||||
| Screen Slot Size(mm) | 0.2～0.75 | |||||||
| Capacity of Hole Type(t/24h) | 15~30 | 25~50 | 50~100 | 75~150 | 100~200 | 125~250 | 150~300 | 200~400 |
| Capacity of Slot Type (t/24h) | 6~25 | 10~40 | 20~80 | 30~120 | 40~160 | 50~200 | 60~240 | 80~300 |
| Motor Power(kw) | 11 | 15 | 30 | 37 | 45 | 75 | 90 | 132 |
