AWM 1431 PVC Insulated Electric Wire

: http://wirecable-en.com/3-5-1431-pvc-insulated-electric-wire/index.html

Conductor: Bare, tinned copper
Insulator: PVC
Rated volt.: 600V
Test voltage: 2000V. 1min
Rated temp.: 105℃

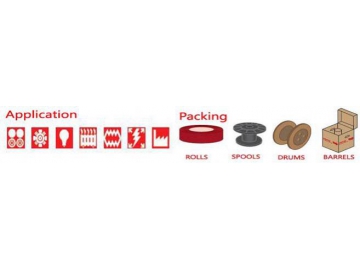

Application
AWM 1431 PVC insulated electric wires are used very popularly in the home electric appliance, lighting, auto wire harness, aviation, military, instruments, plug, etc.

Technical Parameters

Size	Cross section	Conductor		Insulation thickness	Wire OD		Resistance
		structure	OD	Nominal	Nominal	Toler.	20℃ Max.
AWG	mm²	No./mm	mm	mm	mm	mm	Ω/KM
20	0.519	21/0.18	0.96	0.76	2.45	±0.10	34.6
		10/0.254
		26/0.16
		7/0.31
19	0.653	26/0.18	1.10	0.76	2.65	±0.10	29.1
18	0.823	33/0.18	1.20	0.76	2.75	±0.10	23.2
		16/0.254
		7/0.39
		24/0.20
17	1.04	21/0.254	1.38	0.76	2.90	±0.10	20
		40/0.18
		32/0.20
16	1.31	26/0.254	1.55	0.76	3.10	±0.20	14.6
		7/0.49
		52/0.18
15	1.65	33/0.254	1.75	0.76	3.30	±0.20	11.3
14	2.08	41/0.254	1.95	0.76	3.50	±0.20	8.96
		7/0.62
13	2.63	52/0.254	2.19	0.76	3.75	±0.20	7.10
12	3.31	65/0.254	2.44	0.76	4.00	±0.20	5.64
11	4.17	83/0.254	2.74	0.76	4.30	±0.20	4.48
10	5.261	105/0.254	3.43	0.76	4.95	±0.20	3.55
9	6.631	53/0.40	3.98	0.76	5.50	0.30	2.81
						-0.20
8	8.367	70/0.40	4.40	1.14	6.70	0.30	2.30
						-0.20
7	10.55	84/0.40	4.60	1.52	7.65	0.30	1.79
						-0.20
6	13.30	105/0.40	5.30	1.52	8.35	0.30	1.42
						-0.20
5	16.77	133/0.40	6.00	1.52	9.05	0.30	1.12
						-0.20
4	21.15	168/0.40	6.80	1.52	9.85	0.30	0.89
						-0.20
3	26.67	210/0.40	7.60	1.52	10.65	0.40	0.707
						-0.20
2	33.62	266/0.40	8.50	1.52	11.55	0.40	0.56
						-0.20
1	42.41	217/0.50	9.60	1.98	13.6	0.40	0.449
						-0.20
1/0	53.49	276/0.50	11.2	1.98	15.2	0.40	0.355
						-0.20
2/0	67.43	342/0.50	12.2	1.98	16.2	0.40	0.282
						-0.20
3/0	85.01	437/0.50	13.8	1.98	17.8	0.40	0.223
						-0.20
4/0	107.2	551/0.50	15.5	1.98	19.5	0.40	0.177
						-0.20

Mechanical Properties
Tensile strength: ≥10.3N/mm2
Elongation at break of insulation: ≥150%
Min. bending radius: 6×OD
Standard: UL758, UL62 and UL1581
Meet with RoHS, REACH rules.

Characteristics
AWM 1431 PVC insulated electric wire has good performance in corrosion resistant and anti-chemical liquid, acid, alkali, excellent thermal stability. It is light weight and competitive price for customer’s choice.
We adopted good quality PVC to assure that our extruded wire can meet with strict quality control.
