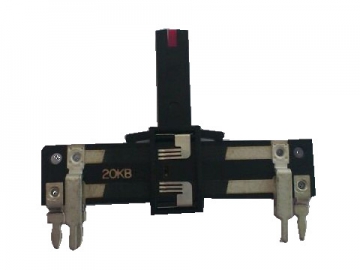

20mm Travel Single Gang Slide Potentiometer, WH30 Series
Request a Quote
Part Number
WH30
The 20mm single gang slide potentiometer provides an exceptional operational feel, and a durable, extended sliding life.
Parameters
| Travel | 20mm |
| operating force | 10~120gf.cm |
| Stopper strength | 20~150gf.cm |
| Linear accuracy | ±10% |
| Number of resistor elements | single-unit |
| Resistance tolerance | ±20% |
| Rated power | ≤0.02W |
| Rated power | DC12V、24V |
| Voltage Resistance | 250V AC for 1 minute |
| Operating life | ≥30000cycles |
Dimensions
