Log Slitter (Ten-shaft)

Log Slitter (Ten-shaft)
Log Slitter (Ten-shaft)
: http://converting-equips.com/3-5-automatic-log-slitter.html

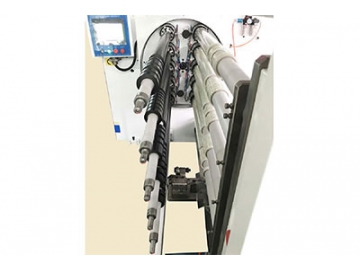

This log slitter is equipped with 10 shafts, suitable for slitting of various adhesive and non-adhesive tapes with maximum diameter of 135mm, such as clear tape, masking tape, electrical insulating tape, double sided tape, cleaning tape, kraft paper tape, foam tape, medical tape, fabric reinforced tape, etc. The machine speed is up to 60cuts/min.

Applications

PVC, OPP, PE masking tape, double sided adhesive tape, plastic film, foam tape, fabric reinforced tape, etc.

Technical Data
Max. cutting speed 60cuts/min
Min. cutting width 2mm
Max. material diameter 135mm
Power supply 4W 3P 380V/50HZ
Power 8kw
Air pressure 0.63mpa
Dimension (L*W*H) 3020*2150*1900mm
Weight 3500kg
