Description

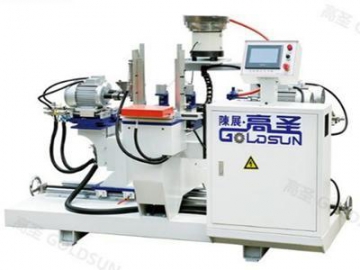

The GS-20 automatic dual direction drilling tapping machine is mainly used for drilling and tapping processes in the production of wooden side plates. This machine is designed with a dual direction drilling device, and it can process 6 pieces of timber in one minute, and up to 2,000 pieces in 8 hours.

Parameters
Tapping motor 1hp×2
Drilling motor 1hp×2
Servo motor 400w
Manufacturing length 150-450mm/15-35mm
Machine size(length*width*height) 2000×1300×1400mm
Weight 1200kg

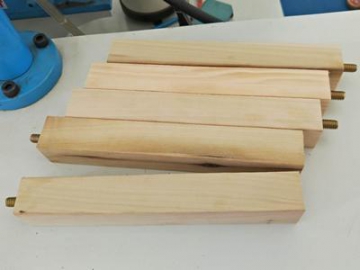

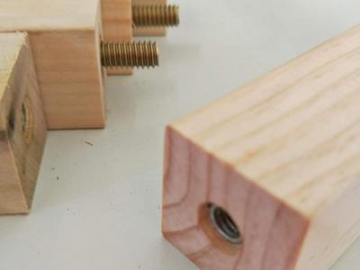

Drilling position and tapping position
Characteristics

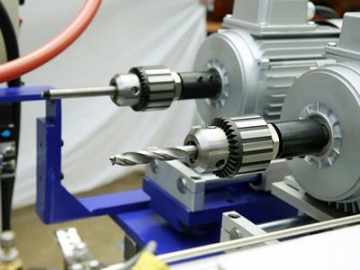

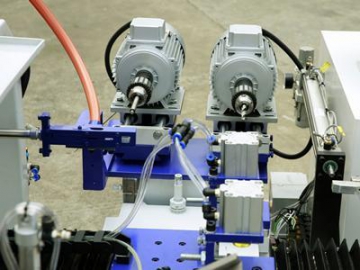

  • This machine is designed with a dual direction drilling device. The hole position is precise, giving the equipment a high production efficiency.
  • The loading process is operated automatically, saving labor costs.
  • The user interface is clear and easy to operate.
  • The high-quality motors and corresponding devices make the operation smooth and stable.
  • The electric circuit is designed to showcase its quality and make operation simple and convenient.
