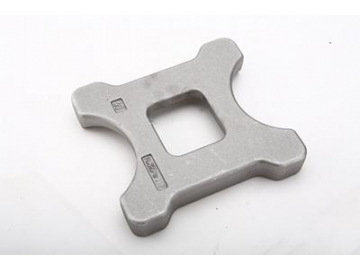

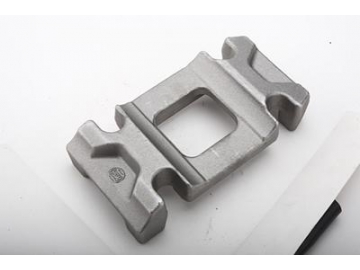

Leaf Spring Seat Forgings for Automotive Suspension
Solution: Leaf spring seat forgings for automotive suspension
Material: Carbon steel SAE1035, SAE1045, CM490
Precision: ±0.01mm
Product drawingProcessing
1. Our R&D personnel are responsible for the development of new products according to customer needs, as well as the development and customization of various mechanical components

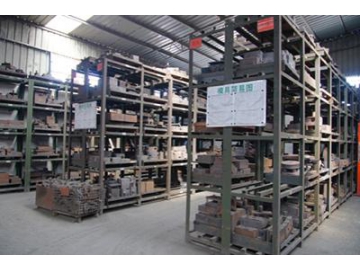

2. Mold processing: CAD design, CAM, UG, SOLIDWORKS modeling, CNC processing.
The molds are made of a special die steel, which has excellent performance in precision, fatigue resistance and wear resistance, ensuring customers receive reliable, high quality products.
3. After a series of processes covering heating, open die forging, preforming, trimming, and correction, a semi-finished forging is achieved, followed by a final product developed through a heating and machining performance.

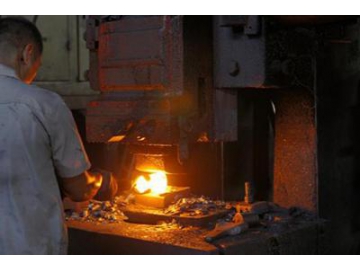

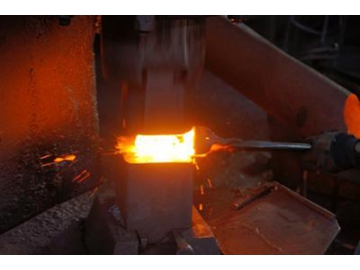

Open die forging
It uses a friction welding machine for production, during which the basic geometric shape of the forged product is achieved, and the internal structure (mechanical performance) is improved after a hammering process
Sheet stamping
Uses the metal blanks to achieve the basic product shape according to design requirements
Die cutting
Cutting the burr on the semi-finished product
Rectification
Rectification uses a height Vernier caliper to determine that the processed ends are the correct size, with a measuring precision of 0.02mm. Necessary testing equipment includes the following: Coordinate measuring machine, Vernier caliper, outside micrometer, circular tester and more.
