Alloy and Carbon Steel Forged Swivel Hook Manufacturer

Alloy and Carbon Steel Forged Swivel Hook

: http://shenli-rigging.com/3-8-forged-swivel-hook.html

Features
● IG70 material: alloy steel;
● G43 material: carbon steel;
● It is forged and heat treated.
● Alloy steel forged swivel hook: Ultimate load is 4.5 times the Working Load Limit.
● Carbon steel forged swivel hook: Ultimate load is 5 times the Working Load Limit.

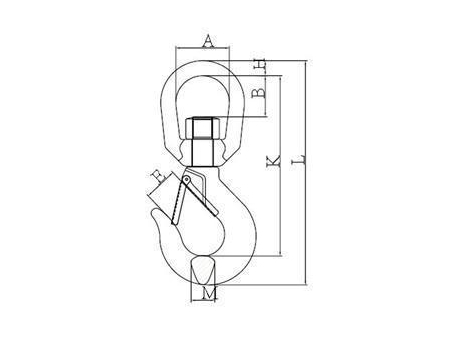

Parameters (Unit: mm)

Item code	Weight (KG)	Alloy Steel		Carbon steel		A±1	E±2	B±2	H±0.6	K±3	L±3	M±1
Item code	Weight (KG)	Working load limit (t)	Breaking load (t)	Working load limit (t)	Breaking load (t)	A±1	E±2	B±2	H±0.6	K±3	L±3	M±1
SLR-132	0.3	0.75	3.375	0.5	2.5	31.5	17	22.5	9	110	137	15
SLR-132	0.34	1	4.5	0.75	3.75	32	17	22.5	9	108.3	137	16
SLR-132	0.57	1.5	6.75	1	5	37.5	22.5	29.5	12	133.5	163.5	16
SLR-132	1.02	2	9	1.5	7.5	42.5	26	33	15.8	150.5	192	17.5
SLR-132	1.24	3	13.5	2	10	42.5	26	33	15.8	163	209	23
SLR-132	2.25	5	22.5	3	15	48	32.5	39	18	191	246	31
SLR-132	4.66	7	31.5	5	25	64	43	53	25	243.5	313	34
SLR-132	7.4	11	49.5	7.5	37.5	70	49.5	53	28.5	277	364	41.5
SLR-132	10.6	15	67.5	10	50	79	54.5	62	32	332	431	55.7
SLR-132	21.4	22	99	15	75	105	81	108	40	427	543	70
SLR-132	32	30	135	20	100	105	100	96	40	465.3	596	76.2
