CNC Gantry Machining Center, Series LM-4025
Double Column Machining Center

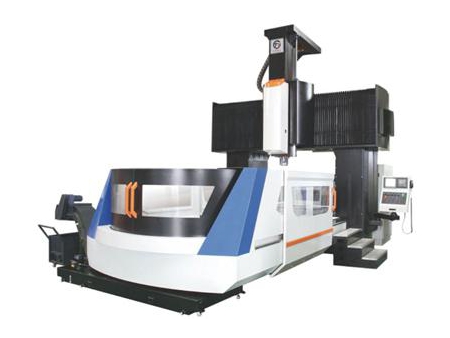

LM-4025 Gantry 3-axis CNC machine, a heavy duty lathe, is specially designed for large and complex components. Its travels on the X axis, Y axis and Z axis are 4000mm, 2700mm and 1000mm respectively, with a positioning accuracy of 0.035/1000mm. This CNC machine requires a power of only 45kVa.
Parameters| Model | LM-4025 |
| Travels | |
| X-axis travel (mm) | 4000 |
| Y-axis travel (mm) | 2700 |
| Z-axis travel (mm) | 1000 |
| Distance from spindle nose to table center (mm) | 200-1200 |
| Table (gantry) width (mm) | 2500 |
| Worktable | |
| Worktable area (mm) | 4000×2100 |
| Maximum weight on table (kg) | 10000 |
| T-slot (width – number of slot x spacing) (mm) | 9-28×220 |
| Spindle | |
| Standard spindle speed (rpm) | 6000 |
| Spindle taper | BT50φ190 |
| Spindle drive mode | Belt drive |
| Spindle power (KW) | 22 |
| Feed | |
| Cutting feed （mm/min） | 8000 |
| Rapid feed (m/min) | 10/12/10 |
| Linear guide rail width / number of tracks (mm) | 2-55X2-55Y:Z box guideway |
| Others | |
| Three-axis motor power (KW) | 7.0/7.0/7.0 |
| Positioning accuracy (mm) | 0.035/1000 |
| Repeatability (mm) | 0.025 |
| Control system | MISUBISHI: M80A/M80B, FANUC:Oi-MF, SINUMERIK 828D |
| Coolant tank (Pump) (HP) | 0.48 |
| Power requirement (KVA) | 45 |
| Air pressure (bar) | 6.5 |
| Machine weight (t) | 38 |
| Machine dimension (mm) | 9800×4450×4950 |
- Control system and motor
- Box guideway
- Mechanical spindle, gear drive
- Chain-type tool magazine
