2.4G Wireless Meeting System Receiver Unit HT-2400M

  • HT-2400M
  • Adopt 2.4G bidirectional transmit technology.
  • Support up to 250 microphones in one system.
  • Maximum 4 microphones can be on at the same time, support Mode: Limit (1/2/3),FIFO (1/2/3),Chairman Only.
  • Support video camera auto-track with video processor.
  • 160x32 dot matrix LCD display system information.
  • Dante-enabled Products DCN-2400M (Option).

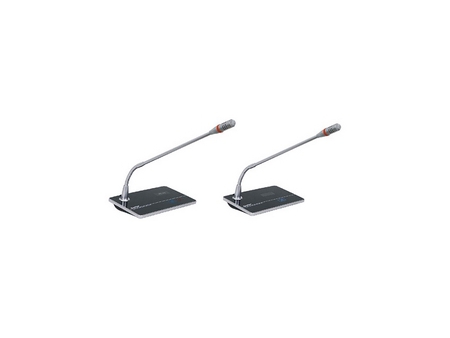

2.4G Wireless Meeting System Unit HT-2400c/d

  • HT-2400c/d
  • Portable table moving, gooseneck microphone can be pulled out.
  • LCD display microphone ID, battery level, microphone state, etc.
  • Microphone touch on/off panel.
  • Powered by rechargeable battery pack.

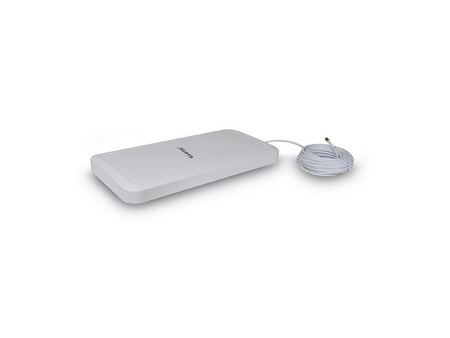

2.4G Wireless Meeting System Antenna Panel HT-2400T

  • HT-2400T
Technical Parameter
Receiver
  • Carrier Frequency: 2.4G (2400-2483MHz)
  • Audio Channel: 4 (1 Chairman 3 Delegate)
  • Spread Spectrum: Adaptive frequency hopping spreadspectrum, 1000 hops per second
  • Transmitting Power: <20dBm
  • Frequency response: 50Hz-15KHz
  • Power Supply: 230V/50Hz~60Hz
  • Consumption Rating: 7W
  • Receiving sensitivity: -83dBM
  • S/N:95dB
  • Dimensions & N.W: 483 x 377 x 88 mm, 2 U rack 19"
Microphone
  • Carrier Frequency: 2.4G (2400-2483MHz)
  • Frequency response: 50Hz-15KHz
  • Power Supply: 3.7VDC battery pack
  • Consumption Rating: 0.5W
  • Receiving sensitivity: -83dBM S/N:95dB
  • Max Qty: <250
Battery Charger
  • Power Supply: 110V-240V/50Hz~60Hz
  • MAX charging current of each unit: 700mA
  • Charging status: Red LED flashing-Charging Green LED-Full Charged
  • Dimensions & N.W: HT-2288B/08:400x380x150mm
  • HT-2288B/16:620x370x175mm, 9kg
Ordering Information
  • HT-2400M-- Wireless Meeting Receiver
  • DCN-2400M-- Wireless Meeting Receiver (Dante)
  • HT-2400T-- Antenna Panel
  • HT-2400c--Chairman Microphone
  • HT-2400d--Delegate Microphone
  • HT-2288B/08--Battery Charger
  • HT-2288B/16--Battery Charger
  • IRC14430--Rechargeable Battery Pack
  • HT-8008-- Video Processor (SD)
  • HT-8018--Video Processor (HD)
